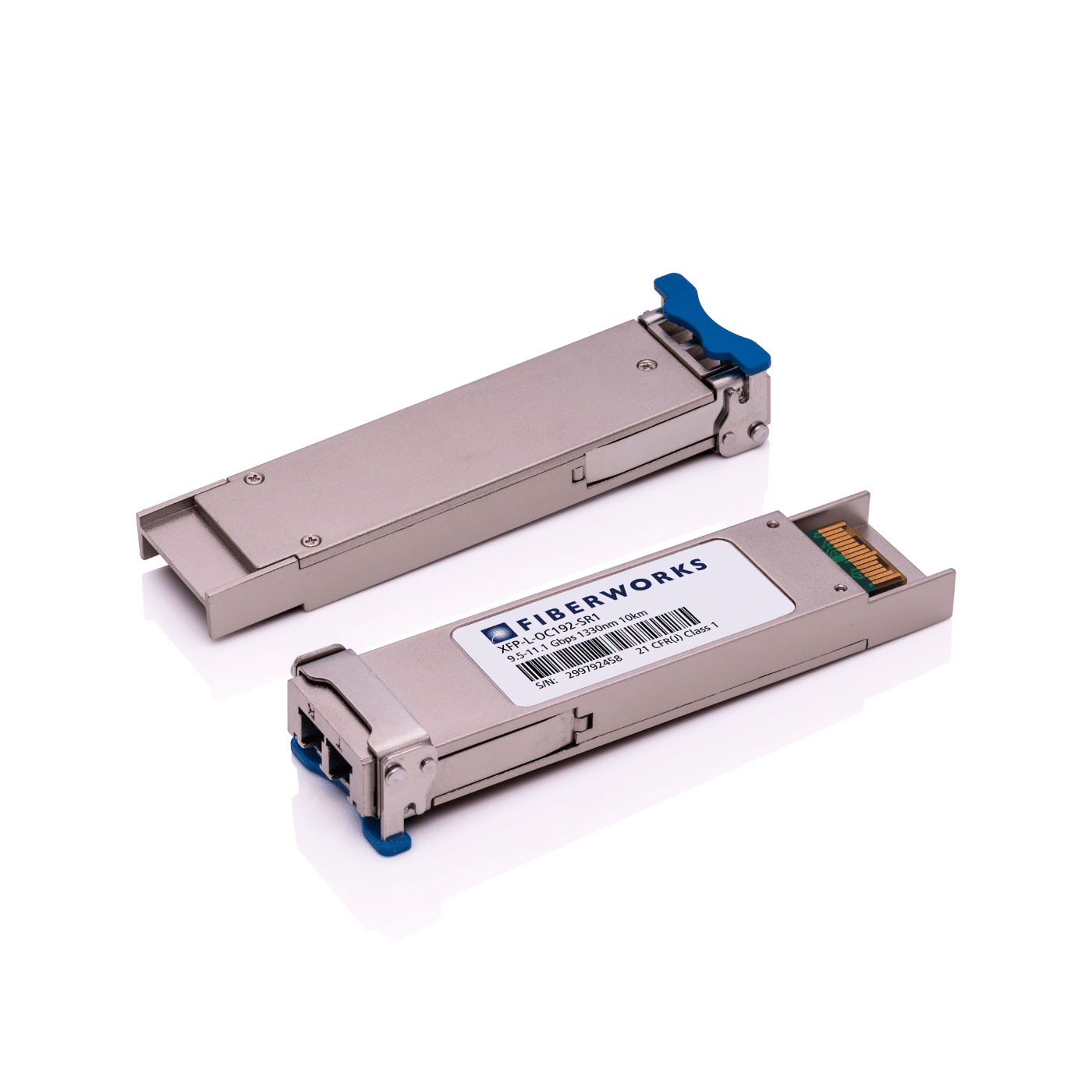

XFP, I-64.1, 9.5-11.1 Gbps, 10km

XFP, I-64.1, 9.5-11.1 Gbps, 10km

Produktnummer: XFP-L-OC192-SR1 Kategori:

650,38 kr

APPLICATIONS
• IEEE 802.3ae 10GBASE-LR 10.3125 Gb/s
• 10GFC Rev.4.0 1200-SM-LL-L 10.5128 Gb/s
• SDH/SONET ITU-T G.691, ITU-T G.709


FEATURES
• Compatible with XFP MSA Rev. 4.5
• Compliant to IEEE 802.3ae 10GBASE-LR at 10.3125 Gbit/s
• Conforms with Fibre Channel 1200-SM-LL-L at 10.51875 Gbit/s
• Up to 10 km transmission on 9/125 µm SMF G.652
• Hot pluggable 30 pin connector
• 1310 nm laser
• Duplex LC-connector interface
• Compliant with the EU RoHS 6 Environmental Requirements

Koding

Alcatel, Cisco, Fiberworks, Huawei, Juniper, Transmode
Bølgelengde (nm)

1310
DDM

Ja
Fareklasse

Laser klasse 1
Formfaktor

XFP
Konnektor

LC Duplex
Lasertype

DFB
Linjemodulasjon

NRZ
Max. mottakereffekt [dBm]

-0, 5
Mediatype

Singelmodus
Mottakerfølsomhet (Rx power min.) [dBm]

-10, 5
Mottakertype

PIN
Produktklassifisering/tollkoder

ECCN: 5A991, HS: 8517.62.0090
Protokoll / bitrate

10 Gigabit Ethernet, 10G Fibre Channel, SDH STM-64, OTN/G.709/G.sup43 OTU2(e)
Rekkevidde (dB)

8
Rekkevidde (km)

10
Sendestyrke (Tx power) max. [dBm]

-1
Sendestyrke (Tx power) min. [dBm]

-6
Temperaturområde, drift

0°C – +70°C (standard)
Temperaturområde, lagring

-40°C – +85°C
