APPLICATIONS• 10GBASE-BX at 10.3125 Gb/s• 10GBASE-BX at 9.953 Gb/sFEATURES• Supports 9.95 to 11.3 Gb/s data rates• Single Mode LC Receptacle Bi-directional Transceiver• Up to 10km transmission on SMF• Power dissipation < 2 W• 1270nm/1330nm DFB laser andPIN receiver• Digital Diagnostic monitoring• Compliant with XFP MSA with simplex LC connector• Operating case temperature:0 ~ +70ºC

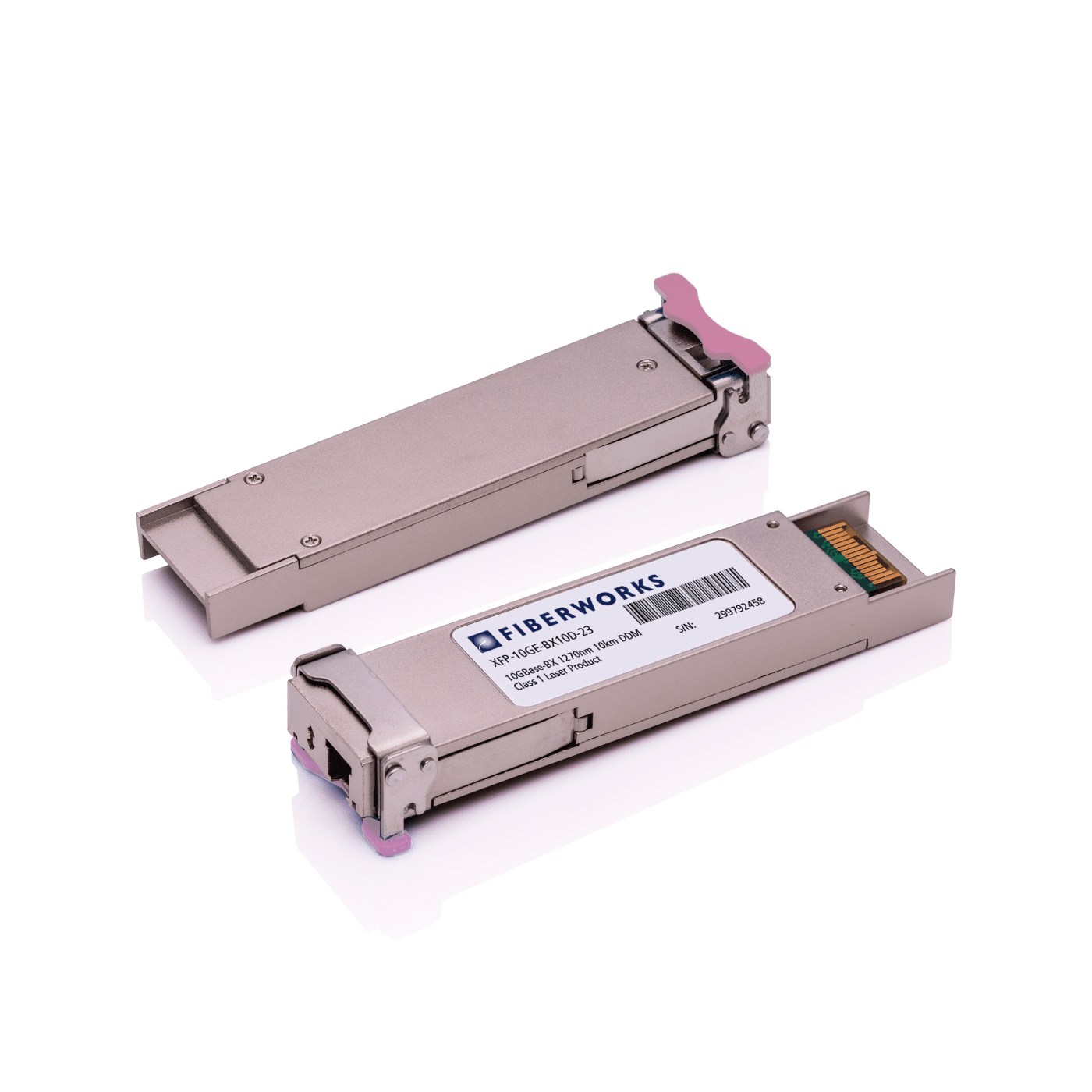

XFP BiDi, 10 GE, DDM, SM, 10km
APPLICATIONS• 10GBASE-BX at 10.3125 Gb/s• 10GBASE-BX at 9.953 Gb/sFEATURES• Supports 9.95 to 11.3 Gb/s data rates• Single Mode LC Receptacle Bi-directional Transceiver• Up to 10km transmission on SMF• Power dissipation < 2 W• 1270nm/1330nm DFB laser andPIN receiver• Digital Diagnostic monitoring• Compliant with XFP MSA with simplex LC connector• Operating case temperature:0 ~ +70ºC
På lager
499,13 kr
| Koding | 3Com |
|---|---|
| Bølgelengde (nm) | 1270/1330 |
| DDM | Ja |
| Fareklasse | Laser klasse 1 |
| Formfaktor | XFP |
| Koding | 3Com (nå H3C) |
| Konnektor | LC Simplex |
| Lasertype | DFB |
| Linjemodulasjon | NRZ |
| Mediatype | Singelfiber |
| Mottakertype | PIN |
| Produktklassifisering/tollkoder | ECCN: 5A991HS: 8517.62.0090 |
| Protokoll / bitrate | 10 Gigabit Ethernet |
| Rekkevidde (dB) | 9 |
| Rekkevidde (km) | 10 |
| Temperaturområde, drift | 0°C – +70°C (standard) |
| Temperaturområde, lagring | -40°C – +85°C |
