APPLICATIONS• IEEE 802.3ae 10GBASE-LR 10.3125 Gb/s• 10GFC Rev.4.0 1200-SM-LL-L 10.5128 Gb/s• SDH/SONET ITU-T G.691, ITU-T G.709FEATURES• Power Consumption max. 1.5 W• Compatible with XFP MSA Rev. 4.5• Compliant to IEEE 802.3ae 10GBASE-LR at 10.3125 Gbit/s• Conforms with Fibre Channel 1200-SM-LL-L at 10.51875 Gbit/s• Up to 10 km transmission on 9/125 µm SMF G.652• Hot pluggable 30 pin connector• 1310 nm laser• Duplex LC-connector interface• Compliant with the EU RoHS 6 Environmental Requirements

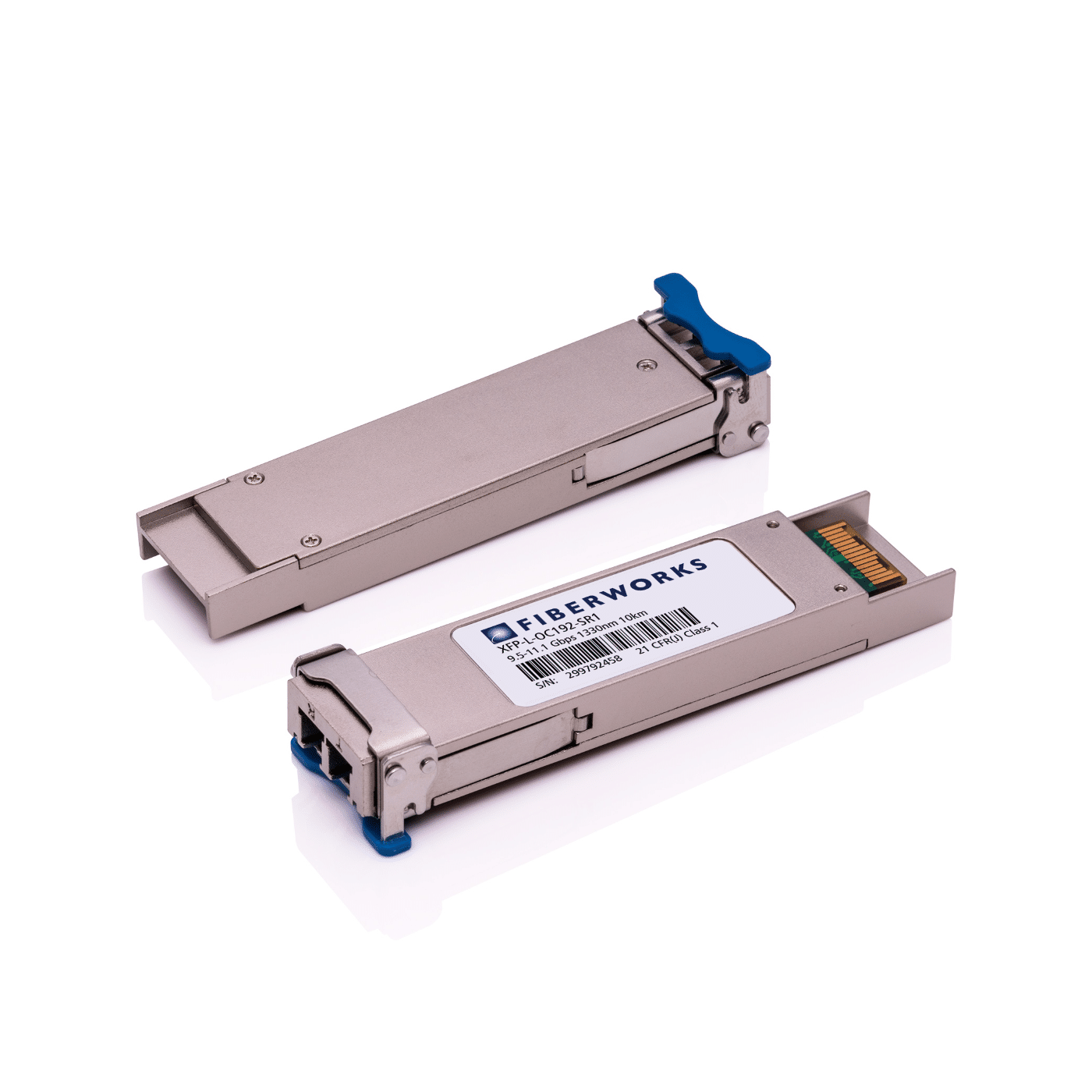

XFP, 9.5-11.1 Gbps, 10km, Low Power
APPLICATIONS• IEEE 802.3ae 10GBASE-LR 10.3125 Gb/s• 10GFC Rev.4.0 1200-SM-LL-L 10.5128 Gb/s• SDH/SONET ITU-T G.691, ITU-T G.709FEATURES• Power Consumption max. 1.5 W• Compatible with XFP MSA Rev. 4.5• Compliant to IEEE 802.3ae 10GBASE-LR at 10.3125 Gbit/s• Conforms with Fibre Channel 1200-SM-LL-L at 10.51875 Gbit/s• Up to 10 km transmission on 9/125 µm SMF G.652• Hot pluggable 30 pin connector• 1310 nm laser• Duplex LC-connector interface• Compliant with the EU RoHS 6 Environmental Requirements
På lager
650,38 kr
| Koding | Cisco |
|---|---|
| Bølgelengde (nm) | 1310 |
| DDM | Ja |
| Fareklasse | Laser klasse 1 |
| Formfaktor | XFP |
| Koding | Cisco |
| Konnektor | LC Duplex |
| Mediatype | Singelmodus |
| Produktklassifisering/tollkoder | ECCN: 5A991HS: 8517.62.0090 |
| Protokoll / bitrate | 10 Gigabit Ethernet10G Fibre ChannelSDH STM-64 |
| Rekkevidde (dB) | 8 |
| Rekkevidde (km) | 10 |
| Temperaturområde, drift | 0°C – +70°C (standard) |
| Temperaturområde, lagring | -40°C – +85°C |
