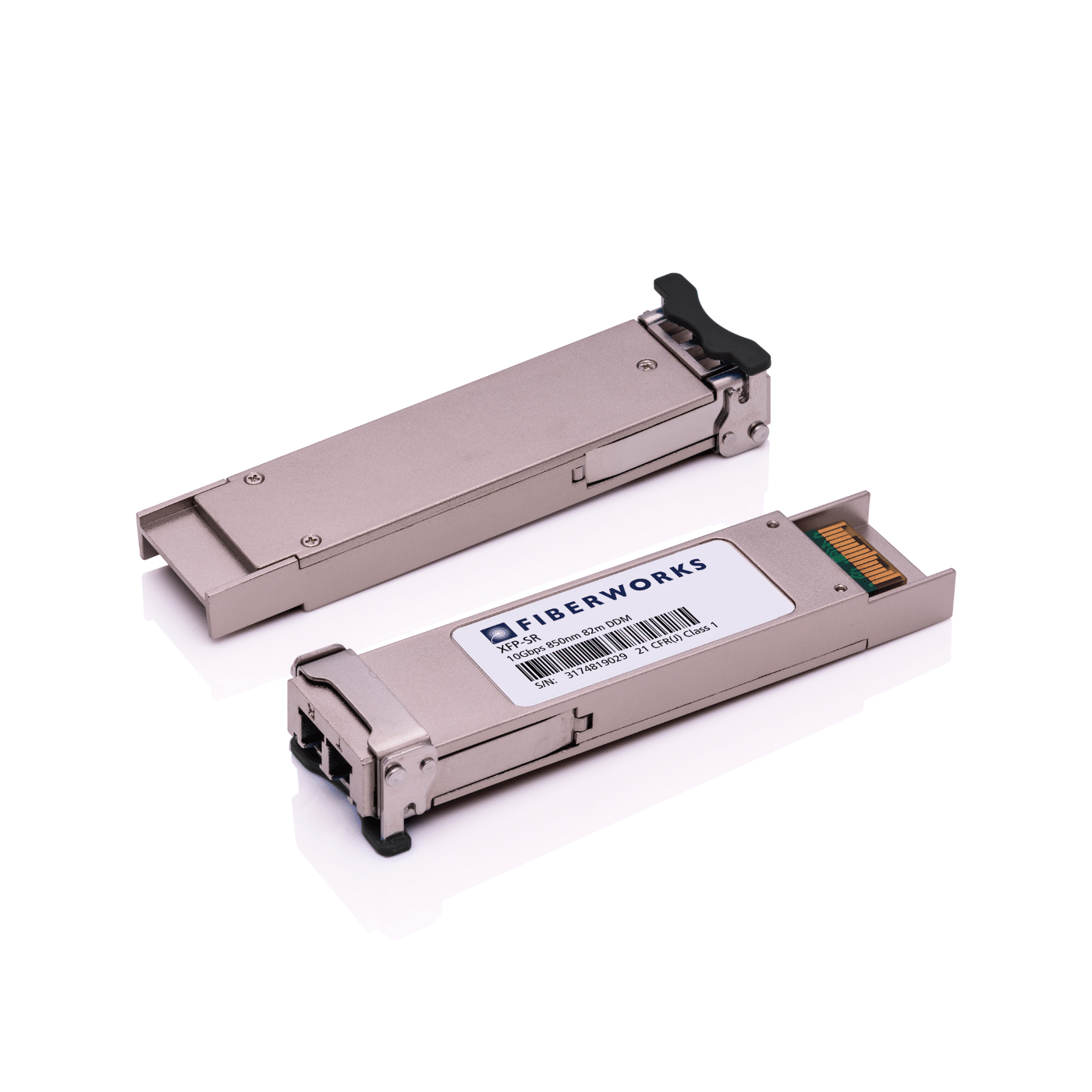

XFP, 10GBase-SR, 10.3125 Gbps, DDM, 300m

XFP, 10GBase-SR, 10.3125 Gbps, DDM, 300m

Produktnummer: XFP-SR Kategori:

499,13 kr

APPLICATIONS
 • IEEE 802.3ae 10GBASE-SR 10.3125 Gb/s
• 10GFC Rev.4.0 1200-Mx-SN-I 10.5128 Gb/s

FEATURES
• Compatible with XFP MSA Rev. 4.5
• Compliant to IEEE 802.3ae 10GBASE-SR at 10.3125 Gbit/s
• Conforms with 10 Gigabit Fibre Channel 1200-M5-SN-I,
1200-M5E-SN-I, 1200-M6-SN-I at 10.51875 Gbit/s
• Up to 82 m transmission on 50/125 µm OM2 MMF
• Up to 300 m transmission on OM3 MMF
• Hot pluggable 30 pin connector
• Vertical Cavity Surface Emitting Laser at 850 nm (VCSEL)
• Duplex LC-connector interface
• Compliant with the EU RoHS 6 Environmental Requirements

Koding

Alcatel, Brocade, Cisco, Extreme, Fiberworks, Foundry, Huawei, Juniper, Juniper EX, Transmode
Bølgelengde (nm)

850
DDM

Ja
Fareklasse

Laser klasse 1
Formfaktor

XFP
Konnektor

LC Duplex
Lasertype

VCSEL
Linjemodulasjon

NRZ
Max. mottakereffekt [dBm]

-1
Mediatype

Multimodus
Mottakerfølsomhet (Rx power min.) [dBm]

-11
Mottakertype

PIN
Produktklassifisering/tollkoder

ECCN: 5A991, HS: 8517.62.0090
Protokoll / bitrate

10 Gigabit Ethernet
Rekkevidde (dB)

5
Rekkevidde (km)

0, 082
Sendestyrke (Tx power) max. [dBm]

-1
Sendestyrke (Tx power) min. [dBm]

-4, 3
Temperaturområde, drift

0°C – +70°C (standard)
Temperaturområde, lagring

-40°C – +85°C
