APPLICATIONS• IEEE 802.3ae 10GBASE-ER 10.3125 Gb/s• 10GFC• Regional NetworkingFEATURES• Compatible with XFP MSA Rev. 4.5• Compliant to IEEE 802.3ae 10GBASE-ER at 10.3125 Gbit/s• Up to 40 km transmission on 9/125 µm SMF G.652• 14 dB link budget• Hot pluggable 30 pin connector• 1550 nm laser (EML)• Duplex LC-connector interface• Compliant with the EU RoHS 6 Environmental Requirements• operating temperature 0ºC to 70ºC

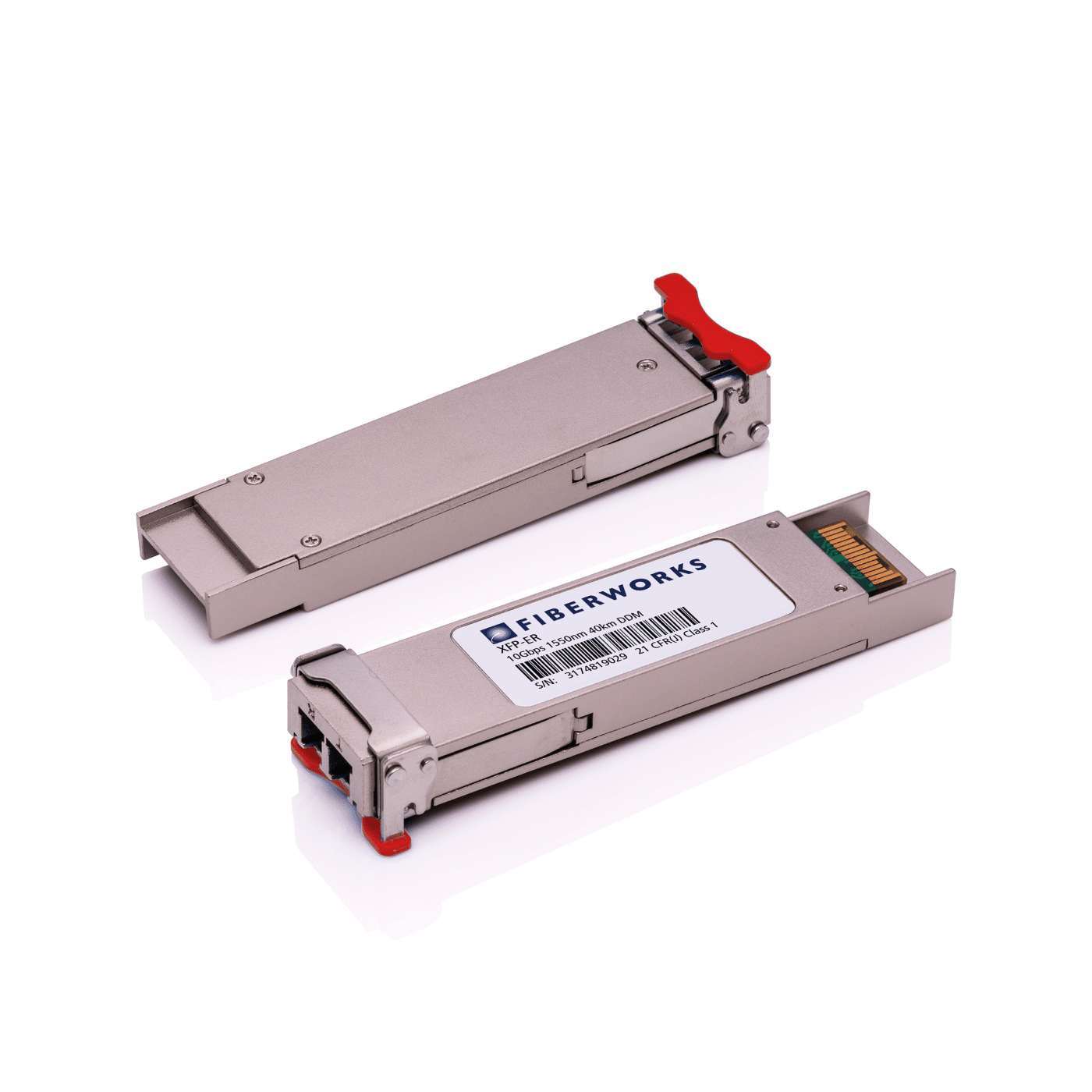

XFP, 10GBase-ER, 10.3125 Gbps, DDM, 40km
APPLICATIONS• IEEE 802.3ae 10GBASE-ER 10.3125 Gb/s• 10GFC• Regional NetworkingFEATURES• Compatible with XFP MSA Rev. 4.5• Compliant to IEEE 802.3ae 10GBASE-ER at 10.3125 Gbit/s• Up to 40 km transmission on 9/125 µm SMF G.652• 14 dB link budget• Hot pluggable 30 pin connector• 1550 nm laser (EML)• Duplex LC-connector interface• Compliant with the EU RoHS 6 Environmental Requirements• operating temperature 0ºC to 70ºC
På lager
1 784,75 kr
| Koding | 3Com |
|---|---|
| Bølgelengde (nm) | 1550 |
| DDM | Ja |
| Fareklasse | Laser klasse 1 |
| Formfaktor | XFP |
| Koding | 3Com (nå H3C) |
| Konnektor | LC Duplex |
| Lasertype | EML |
| Linjemodulasjon | NRZ |
| Max. mottakereffekt [dBm] | -3 |
| Mediatype | Singelmodus |
| Mottakerfølsomhet (Rx power min.) [dBm] | -15 |
| Mottakertype | PIN |
| Produktklassifisering/tollkoder | ECCN: 5A991HS: 8517.62.0090 |
| Protokoll / bitrate | 10 Gigabit Ethernet |
| Rekkevidde (dB) | 15 |
| Rekkevidde (km) | 40 |
| Sendestyrke (Tx power) max. [dBm] | +2 |
| Sendestyrke (Tx power) min. [dBm] | -1 |
| Temperaturområde, drift | 0°C – +70°C (standard) |
| Temperaturområde, lagring | -40°C – +85°C |
