APPLICATIONS• 155 Mb/s to 2.67 Gb/s• CWDM SystemsFEATURES• 18 CWDM wavelengths: 1271 nm to 1611 nm• Up to 80 km transmission (28 dB)• Hot-Pluggable SFP footprint LC Optical Transceiver• Small Form-Factor Pluggable (SFP) MSA compatible• SFF-8472 Digital Diagnostic Function• Fully compliant to ITU G.694.2 & G.695• Operating temperature: -40 to +85

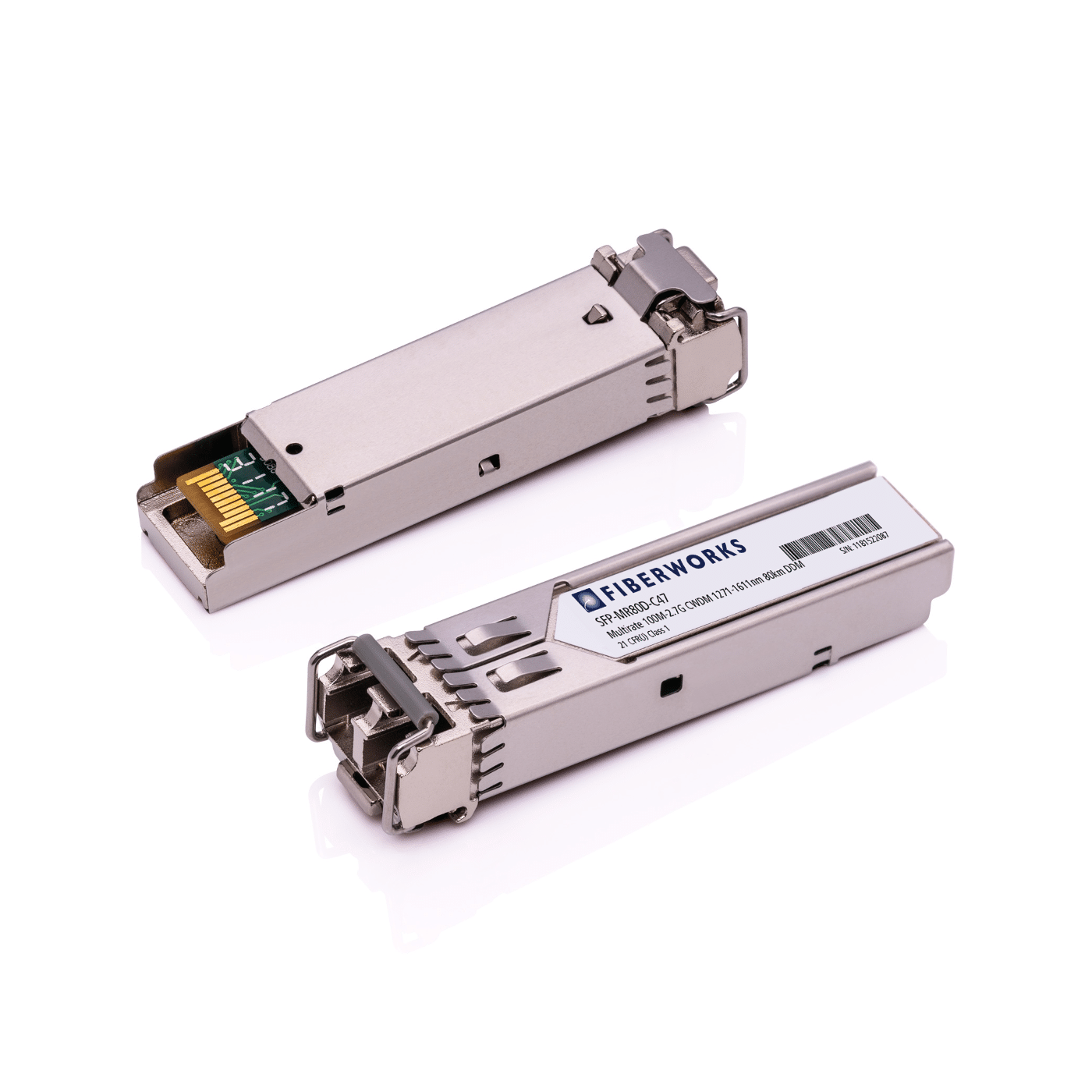

SFP, Multirate 100M-2.7G, DDM, 80km RGD
APPLICATIONS• 155 Mb/s to 2.67 Gb/s• CWDM SystemsFEATURES• 18 CWDM wavelengths: 1271 nm to 1611 nm• Up to 80 km transmission (28 dB)• Hot-Pluggable SFP footprint LC Optical Transceiver• Small Form-Factor Pluggable (SFP) MSA compatible• SFF-8472 Digital Diagnostic Function• Fully compliant to ITU G.694.2 & G.695• Operating temperature: -40 to +85
På lager
3 212,00 kr
| Koding | Fiberworks |
|---|---|
| Bølgelengde (nm) | CWDM |
| CWDM-bølgelengde | 1471 nm |
| DDM | Ja |
| Fareklasse | Laser klasse 1 |
| Formfaktor | SFP |
| Koding | Fiberworks |
| Konnektor | LC Duplex |
| Lasertype | DFB |
| Linjemodulasjon | NRZ |
| Mediatype | Singelmodus |
| Mottakertype | APD |
| Produktklassifisering/tollkoder | ECCN: 5A991HS: 8517.62.0090 |
| Protokoll / bitrate | Gigabit EthernetSDH STM-1SDH STM-4SDH STM-16OTN/G.709 OTU1 |
| Rekkevidde (dB) | 28 |
| Rekkevidde (km) | 80 |
| Temperaturområde, drift | -40°C – +85°C (industriell) |
| Temperaturområde, lagring | -40°C – +85°C |
