APPLICATIONS• 10GBASE-BX at 10.3125 Gb/s• 10GBASE-BX at 9.953 Gb/sFEATURES• Up to 11.1Gbps Data Links• Single Mode LC Receptacle Bi-directional Transceiver• Up to 80km transmission on SMF• Power dissipation <1.0W• 1550nm EML laser and 1490nm APD receiver• Digital Diagnostic monitoring• Compliant with SFP+ MSA with simplex LC connector• Industrial operating case temperature: -40º~+85ºC

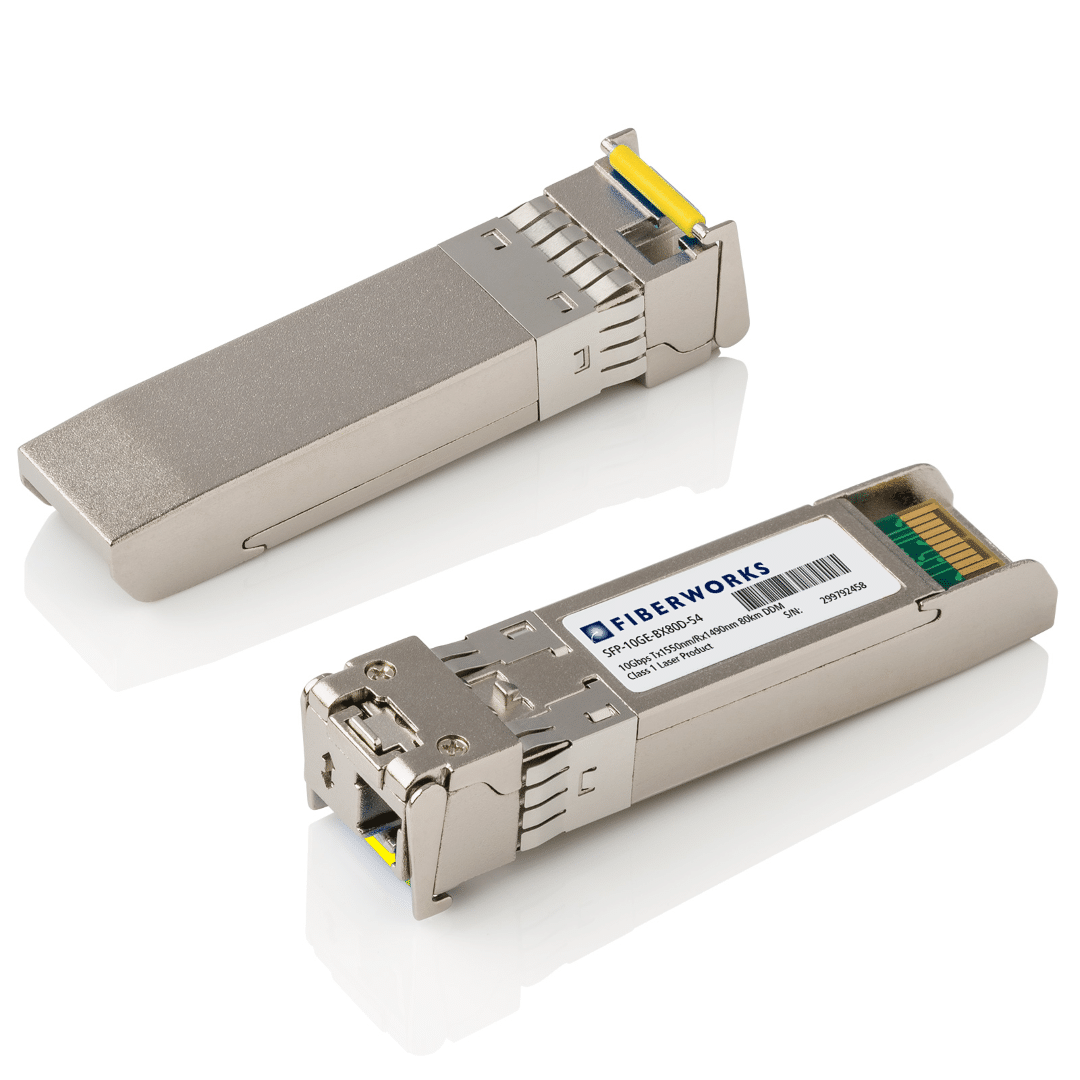

SFP+ BiDi, 10 GE, DDM, SM, 80km, I-Temp
APPLICATIONS• 10GBASE-BX at 10.3125 Gb/s• 10GBASE-BX at 9.953 Gb/sFEATURES• Up to 11.1Gbps Data Links• Single Mode LC Receptacle Bi-directional Transceiver• Up to 80km transmission on SMF• Power dissipation <1.0W• 1550nm EML laser and 1490nm APD receiver• Digital Diagnostic monitoring• Compliant with SFP+ MSA with simplex LC connector• Industrial operating case temperature: -40º~+85ºC
På lager
6 925,05 kr
| Koding | H3C |
|---|---|
| Bølgelengde (nm) | 1490/1550 |
| DDM | Ja |
| Fareklasse | Laser klasse 1 |
| Formfaktor | SFP+ |
| Koding | H3C |
| Konnektor | LC Simplex |
| Mediatype | Singelfiber |
| Produktklassifisering/tollkoder | ECCN: 5A991HS: 8517.62.0090 |
| Protokoll / bitrate | 10 Gigabit Ethernet10G Fibre ChannelSDH STM-64OTN/G.709/G.sup43 OTU2(e)3G-SDI / SMPTE video6G-SDI / SMPTE videoCPRI/OBSAI 1.228 – 3.072 GbpsCPRI/OBSAI 4.915 – 9.830 Gbps |
| Rekkevidde (dB) | 23 |
| Rekkevidde (km) | 80 |
| Temperaturområde, drift | -40°C – +85°C (industriell) |
| Temperaturområde, lagring | -40°C – +85°C |
