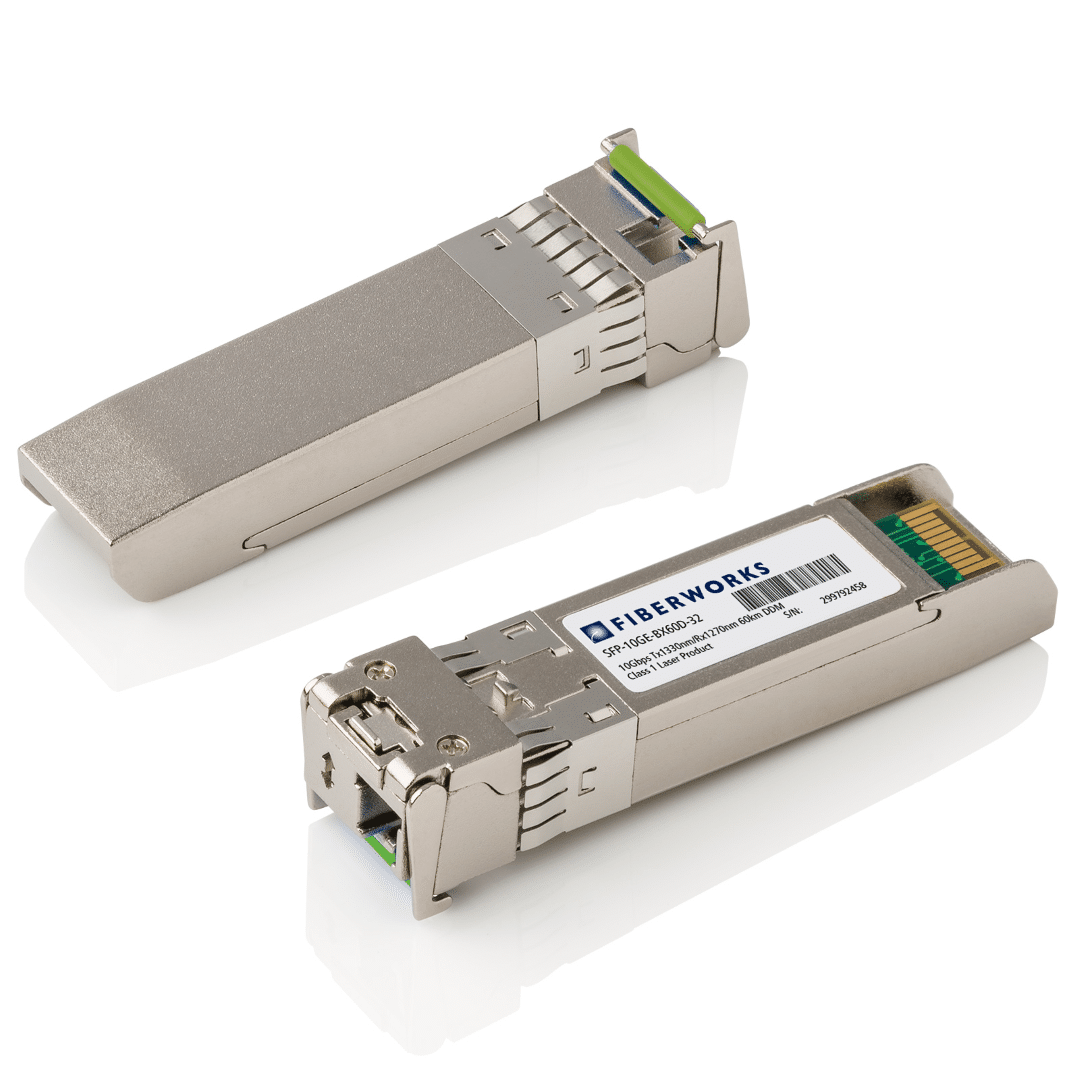

SFP+ BiDi, 10 GE, DDM, SM, 60km, I-Temp

SFP+ BiDi, 10 GE, DDM, SM, 60km, I-Temp

APPLICATIONS• 10GBASE-BX at 10.3125 Gb/s• 10GBASE-BX at 9.953 Gb/sFEATURES• Up to 10.7Gbps Data Links• Single Mode LC Receptacle Bi-directional Transceiver• Up to 60km transmission on SMF• Power dissipation <1.0W• 1330nm DFB laser and 1270nm APD receiver• Digital Diagnostic monitoring• Compliant with SFP+ MSA with simplex LC connector• Industrial operating case temperature: -40~+85ºC

Produktnummer: SFP10G-BX60-32RGD-F5 Kategori:

På lager

1 947,00 kr

APPLICATIONS• 10GBASE-BX at 10.3125 Gb/s• 10GBASE-BX at 9.953 Gb/sFEATURES• Up to 10.7Gbps Data Links• Single Mode LC Receptacle Bi-directional Transceiver• Up to 60km transmission on SMF• Power dissipation <1.0W• 1330nm DFB laser and 1270nm APD receiver• Digital Diagnostic monitoring• Compliant with SFP+ MSA with simplex LC connector• Industrial operating case temperature: -40~+85ºC

Koding

F5 Networks
Bølgelengde (nm)

1270/1330
DDM

Ja
Fareklasse

Laser klasse 1
Formfaktor

SFP+
Koding

F5 Networks
Konnektor

LC Simplex
Mediatype

Singelfiber
Produktklassifisering/tollkoder

ECCN: 5A991HS: 8517.62.0090
Protokoll / bitrate

10 Gigabit Ethernet10G Fibre ChannelSDH STM-64OTN/G.709/G.sup43 OTU2(e)3G-SDI / SMPTE video6G-SDI / SMPTE videoCPRI/OBSAI 1.228 – 3.072 GbpsCPRI/OBSAI 4.915 – 9.830 Gbps
Rekkevidde (dB)

21
Rekkevidde (km)

60
Temperaturområde, drift

-40°C – +85°C (industriell)
Temperaturområde, lagring

-40°C – +85°C
