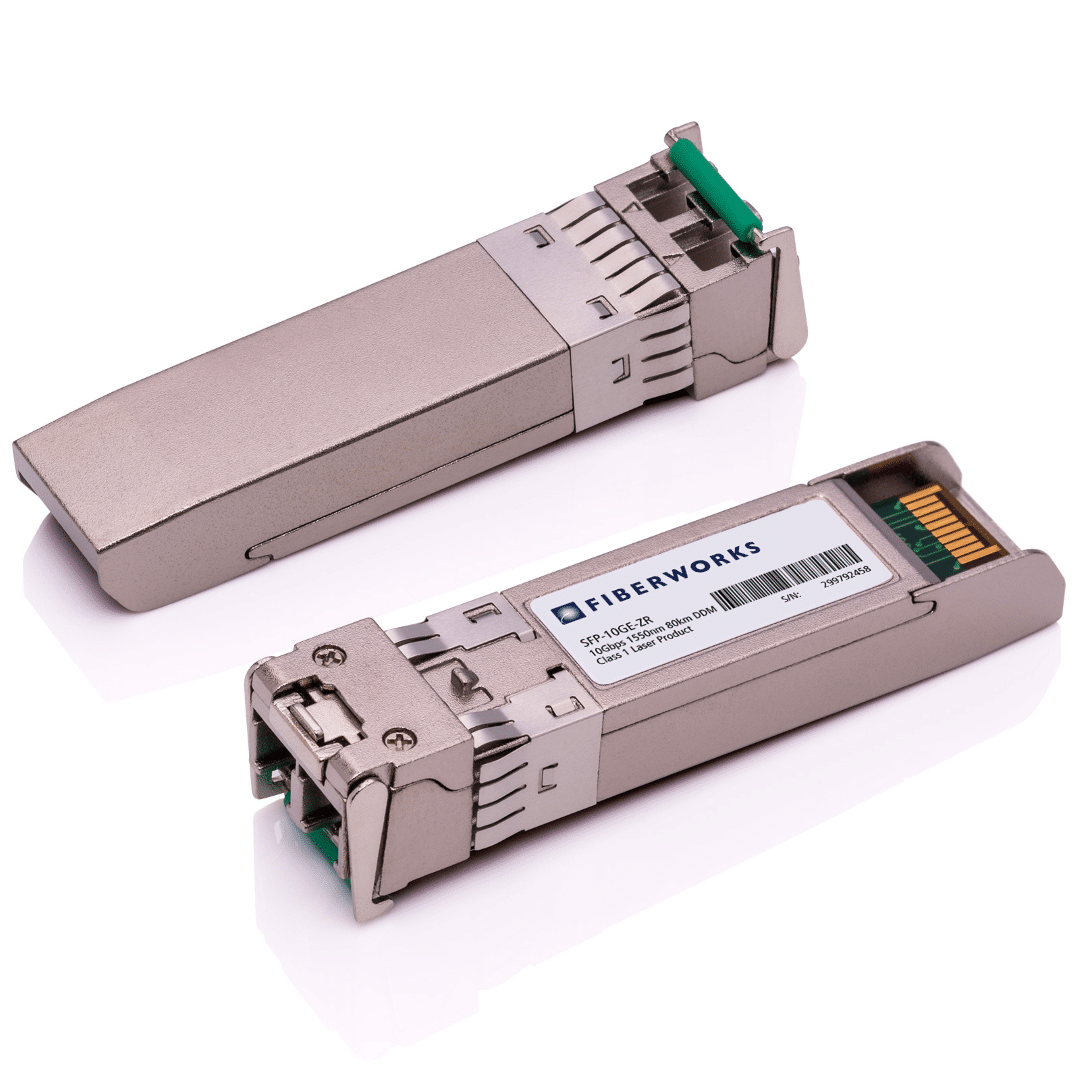

SFP+, 10G Ethernet, DDM, 80km

The SFP-10GE transceiver family are small form factor pluggable modules for bi-directional serial optical data communications such as 10GBASE Ethernet. The modules are compliant to the SFP+ MSA and are hot pluggable. Digital diagnostic functions are available via an I2C serial bus specified in the SFP MSA SFF-8472. The modules meet the requirements of the IEEE 802.3 10GBASE Ethernet standards and are suitable for interconnections in 10G Ethernet environments.The transceivers can also be used for a wide range of other protocols with bitrates between 600 Mbps and 11.1 Gbps.APPLICATIONS• 10GBASE-ZRPRODUCT FEATURES• Hot pluggable SFP+ MSA form factor• Data rate up to 11.1Gb/s• Transmission distance up to 80km• 1550 nm laser transmitter  (1530 – 1565 nm, i.e. not suitable for CWDM)• APD photo-detector (max. input power – 8 dBm)• Single 3.3 V power supply• Low power consumption• Duplex LC optical receptacle• Digital Optics Monitoring (DOM)• RoHS-6 compliant (lead-free)• Operating Case Temperature:  Standard: -5°C to 70°C
