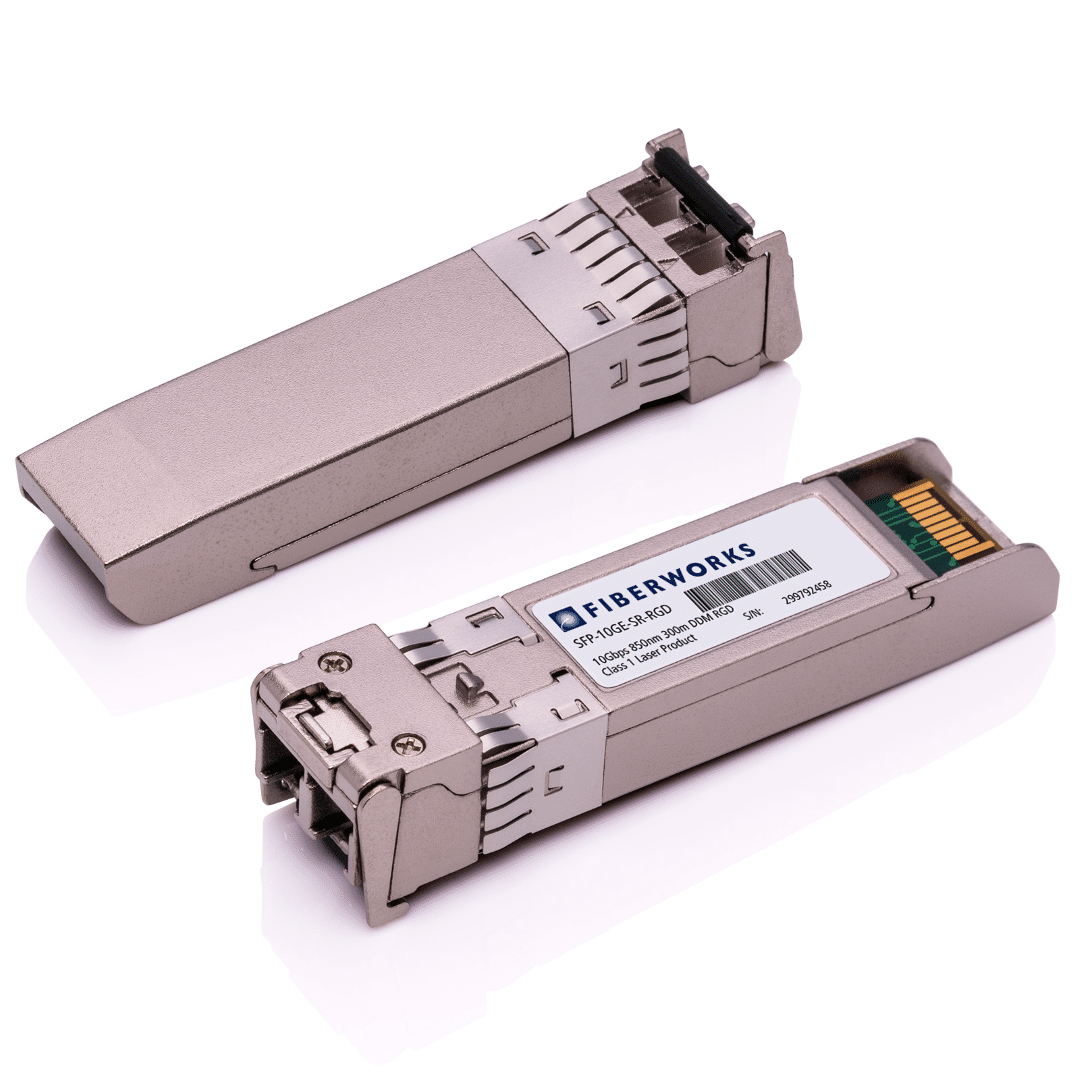

The SFP-10GE Ruggedized transceiver family are small form factor pluggable modules for bi-directional serial optical data communications such as 10GBASE Ethernet. The modules are compliant to the SFP+ MSA and are hot pluggable. Digital diagnostic functions are available via an I2C serial bus specified in the SFP MSA SFF-8472. The modules meet the requirements of the IEEE 802.3 10GBASE-SR/LR Ethernet standard and are suitable for interconnections in 10G Ethernet environments. The transceivers can also be used for a wide range of other protocols with bitrates between 600 Mbps and 11.1 Gbps.
SFP-10GE Rugged is made according to industrial standards and supports operating temperatures between -40 °C and 85 °C.
APPLICATIONS
• 10GBASE-SR
• Industrial environments
FEATURES
• Up to 300 m transmission at 850 nm on OM3, 2000 MHz*km
• Hot-Pluggable SFP+ footprint LC Optical Transceiver
• Small Form-Factor Pluggable (SFP) MSA compatible
• SFF-8472 Digital Diagnostics Monitoring
• Industrial operating temperature range, -40°C – +85°C
