The SFP-100Base are fully compliant with the latest industrial SFP Multi-Source Agreement (MSA). They support data rates in a wide range of 100~155.520 Mbps and can be used in datacom or FTTx applications.APPLICATIONS• 100Base Ethernet• FTTxFEATURES• Hot-Pluggable SFP footprint• Operating temperature 0 °C to 70 °C

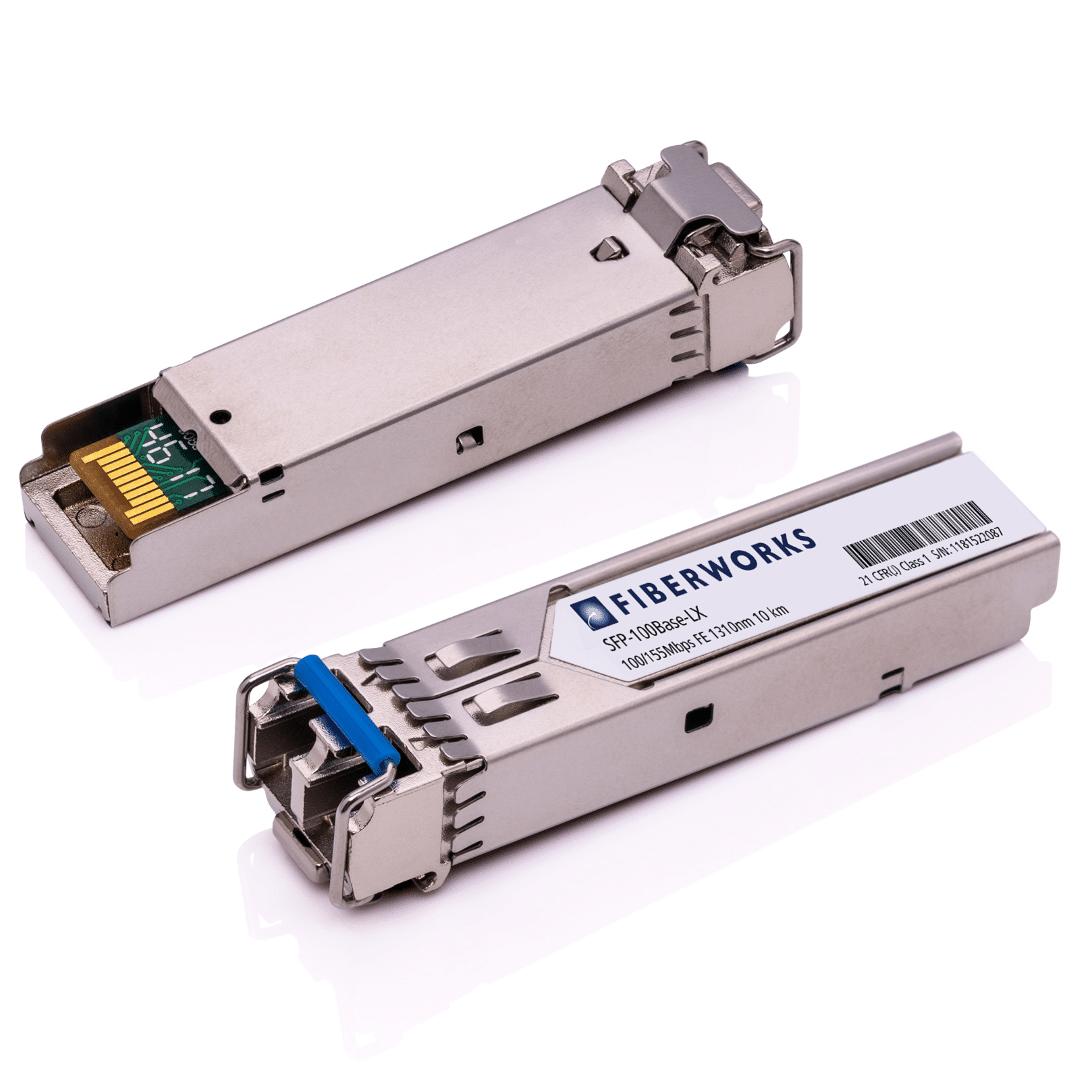

SFP, 100/155Mbps FE, 10km
The SFP-100Base are fully compliant with the latest industrial SFP Multi-Source Agreement (MSA). They support data rates in a wide range of 100~155.520 Mbps and can be used in datacom or FTTx applications.APPLICATIONS• 100Base Ethernet• FTTxFEATURES• Hot-Pluggable SFP footprint• Operating temperature 0 °C to 70 °C
På lager
178,06 kr
| Koding | H3C |
|---|---|
| Bølgelengde (nm) | 1310 |
| DDM | Nei |
| Fareklasse | Laser klasse 1 |
| Formfaktor | SFP |
| Koding | H3C |
| Konnektor | LC Duplex |
| Lasertype | FP (Fabry-Perot) |
| Linjemodulasjon | NRZ |
| Max. mottakereffekt [dBm] | -10 |
| Mediatype | SingelmodusMultimodus |
| Mottakerfølsomhet (Rx power min.) [dBm] | -29 |
| Mottakertype | PIN |
| Produktklassifisering/tollkoder | ECCN: 5A991HS: 8517.62.0090 |
| Protokoll / bitrate | Fast Ethernet |
| Rekkevidde (dB) | 14 |
| Rekkevidde (km) | 10 |
| Sendestyrke (Tx power) max. [dBm] | -8 |
| Sendestyrke (Tx power) min. [dBm] | -15 |
| Temperaturområde, drift | 0°C – +70°C (standard) |
| Temperaturområde, lagring | -40°C – +85°C |
