APPLICATIONS• 1.25 Gb/s• Ethernet IEEE 802.3ae• 1G Fibre ChannelFEATURES• 45 DWDM channels (λ): 1529.55 nm – 1564.68 nm• Link budget with ADP receiver: 32dB• Hot-Pluggable SFP footprint LC Optical Transceiver• Small Form-Factor Pluggable (SFP) MSA compatible• SFF-8472 Digital Diagnostic Function• Fully compliant to ITU G.692 & G.694.1• RoHS complianc• Extended operating temperature range, -40°C – +85°C

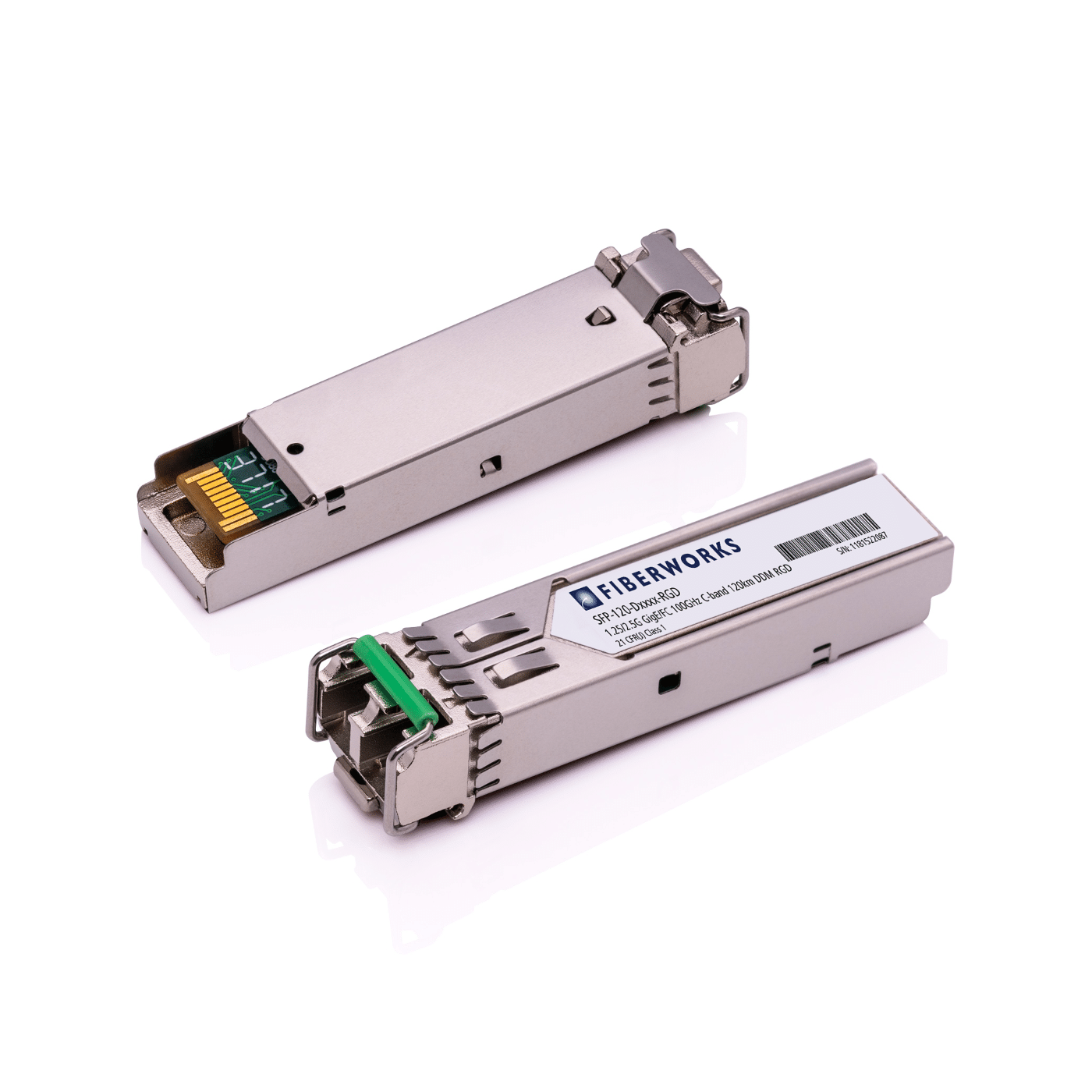

SFP, 1.25Gbps GigE, DDM, 120km, Rugged
APPLICATIONS• 1.25 Gb/s• Ethernet IEEE 802.3ae• 1G Fibre ChannelFEATURES• 45 DWDM channels (λ): 1529.55 nm – 1564.68 nm• Link budget with ADP receiver: 32dB• Hot-Pluggable SFP footprint LC Optical Transceiver• Small Form-Factor Pluggable (SFP) MSA compatible• SFF-8472 Digital Diagnostic Function• Fully compliant to ITU G.692 & G.694.1• RoHS complianc• Extended operating temperature range, -40°C – +85°C
På lager
5 623,00 kr
| Koding | Fiberworks |
|---|---|
| Bølgelengde (nm) | DWDM |
| DDM | Ja |
| DWDM-bølgelengde | 1543, 73 nm / 194, 20 THz |
| Fareklasse | Laser klasse 1 |
| Formfaktor | SFP |
| Koding | Fiberworks |
| Konnektor | LC Duplex |
| Lasertype | DWDM DFB |
| Linjemodulasjon | NRZ |
| Max. mottakereffekt [dBm] | -7 |
| Mediatype | Singelmodus |
| Mottakerfølsomhet (Rx power min.) [dBm] | -32 |
| Mottakertype | APD |
| Produktklassifisering/tollkoder | ECCN: 5A991HS: 8517.62.0090 |
| Protokoll / bitrate | Gigabit Ethernet1G/2G/4G Fibre Channel |
| Rekkevidde (dB) | 32 |
| Rekkevidde (km) | 120 |
| Sendestyrke (Tx power) max. [dBm] | +5 |
| Sendestyrke (Tx power) min. [dBm] | 0 |
| Temperaturområde, drift | -40°C – +85°C (industriell) |
| Temperaturområde, lagring | -40°C – +85°C |
