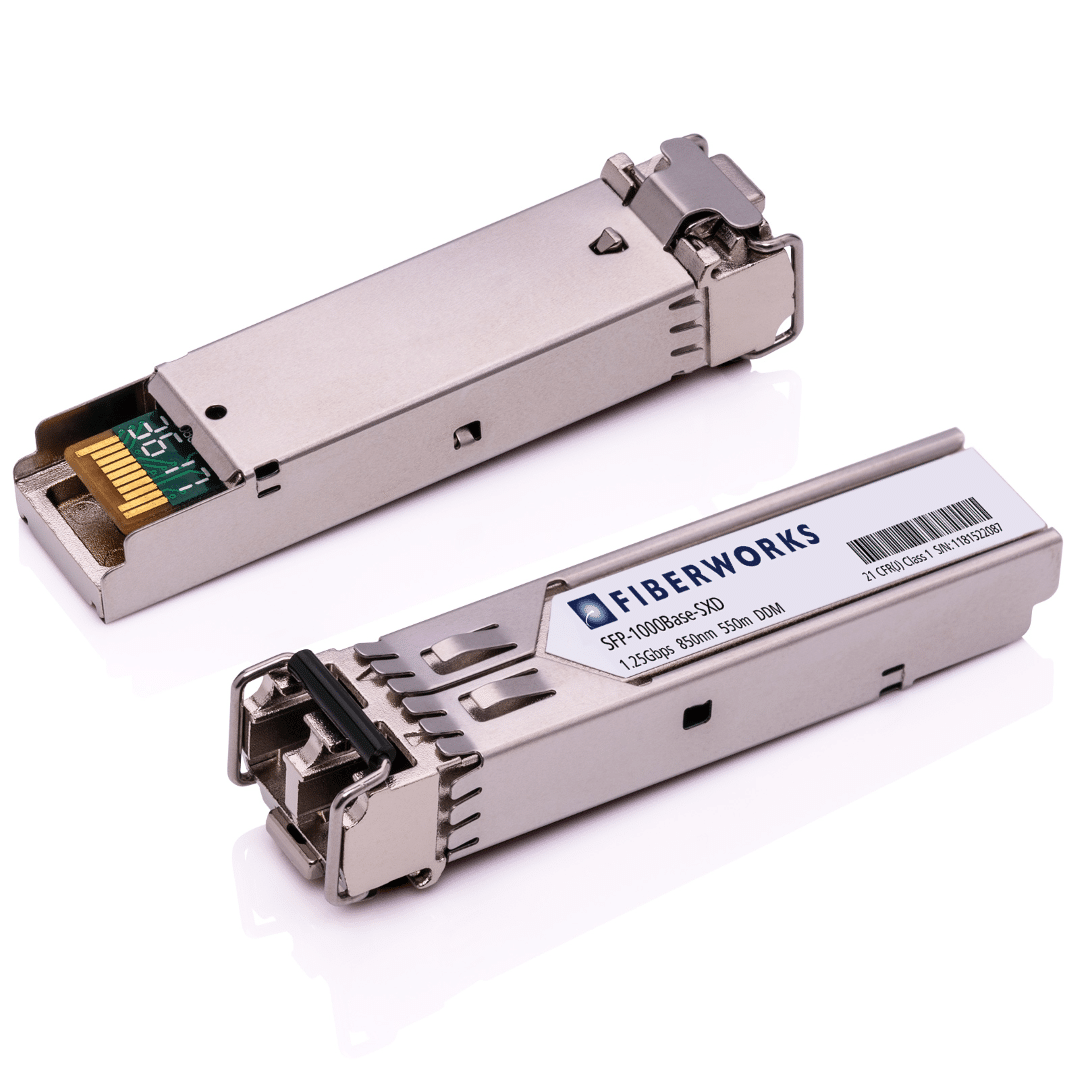

SFP, 1.25 Gbps GigE, DDM, 550m, TAA comp

SFP, 1.25 Gbps GigE, DDM, 550m, TAA comp

Produktnummer: SFP-1000BASESX-TAA Kategori:

239,25 kr

APPLICATIONS
• 1000Base-SX
• 100Base-SX
• 1G Fibre Channel

FEATURES
• Compatible with Small-Form Pluggable (SFP) MSA
• SFF-8472 Digital Diagnostic Function
• Compatible with IEEE 802.3z
• Compatible with ANSI specifications for Fibre Channel
• Triple data-rate of 100 Mb/s, 1.25 Gb/s and 1.6025 Gb/s
• Operating wavelength at 850 nm
• Duplex LC connector type
• 550 m transmission with 50/125 µm MM fiber
• 270 m transmission with 62.5/125 µm MM fiber
• 2 km transmission distance for 100Mb/s operation
• Compatible with FCC 47 CFR Part, Class B
Electromagnetic Interference (EMI)
• Compatible with IEC 61000-4-2 and GR-1089-CORE
Electrostatic Discharge (ESD)
• +3.3V single power supply
• operating temperature 0ºC to 70ºC

Koding

Cisco, Fiberworks
Bølgelengde (nm)

850
DDM

Ja
Fareklasse

Laser klasse 1
Formfaktor

SFP
Koding

FiberworksCisco
Konnektor

LC Duplex
Mediatype

Multimodus
Produktklassifisering/tollkoder

ECCN: 5A991, HS: 8517.62.0090
Protokoll / bitrate

Gigabit Ethernet
Rekkevidde (dB)

9
Rekkevidde (km)

0.550
Temperaturområde, drift

0°C – +70°C (standard)
Temperaturområde, lagring

-40°C – +85°C
