APPLICATIONS• 1000Base-SX• 1G Fibre ChannelFEATURES• Compatible with Small-Form Pluggable (SFP) MSA• Compatible with IEEE 802.3z• Compatible with ANSI specifications for Fibre Channel• Dual data-rate of 1.25 Gb/s and 1.6025 Gb/s operation• Operating wavelength at 850 nm• Duplex LC connector type• 550 m transmission with 50/125 µm MM fiber• 270 m transmission with 62.5/125 µm MM fiber• Compatible with FCC 47 CFR Part, Class B Electromagnetic Interference (EMI)• Compatible with IEC 61000-4-2 and GR-1089-CORE Electrostatic Discharge (ESD)• +3.3V single power supply

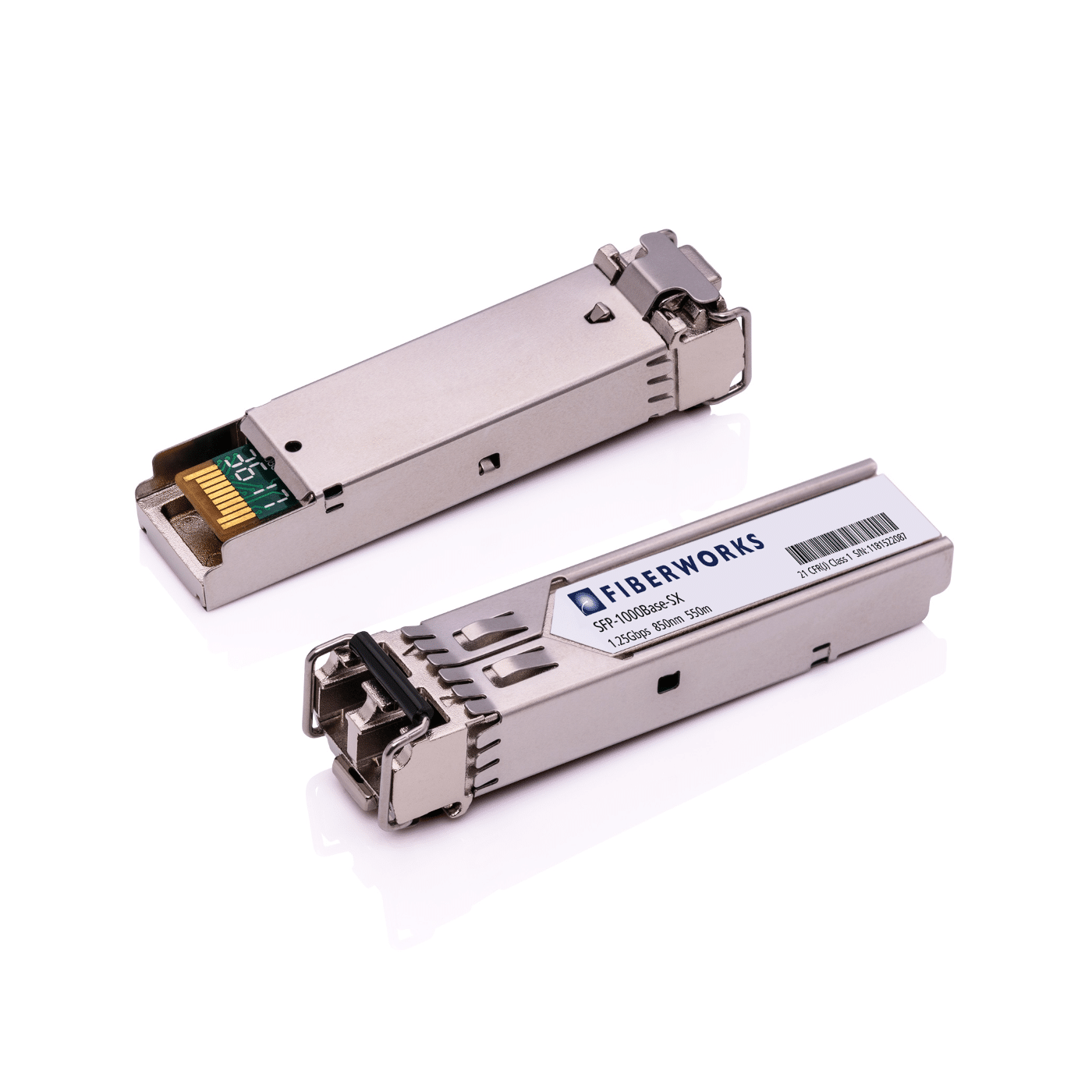

SFP, 1.25 Gbps GigE, 550m
APPLICATIONS• 1000Base-SX• 1G Fibre ChannelFEATURES• Compatible with Small-Form Pluggable (SFP) MSA• Compatible with IEEE 802.3z• Compatible with ANSI specifications for Fibre Channel• Dual data-rate of 1.25 Gb/s and 1.6025 Gb/s operation• Operating wavelength at 850 nm• Duplex LC connector type• 550 m transmission with 50/125 µm MM fiber• 270 m transmission with 62.5/125 µm MM fiber• Compatible with FCC 47 CFR Part, Class B Electromagnetic Interference (EMI)• Compatible with IEC 61000-4-2 and G
På lager
125,81 kr
| Koding | 3Com |
|---|---|
| Bølgelengde (nm) | 850 |
| DDM | Nei |
| Fareklasse | Laser klasse 1 |
| Formfaktor | SFP |
| Koding | 3Com (nå H3C) |
| Konnektor | LC Duplex |
| Lasertype | VCSEL |
| Linjemodulasjon | NRZ |
| Max. mottakereffekt [dBm] | -1 |
| Mediatype | Multimodus |
| Mottakerfølsomhet (Rx power min.) [dBm] | -18 |
| Mottakertype | PIN |
| Produktklassifisering/tollkoder | ECCN: 5A991HS: 8517.62.0090 |
| Protokoll / bitrate | Gigabit Ethernet |
| Rekkevidde (dB) | 9 |
| Rekkevidde (km) | 0.550 |
| Sendestyrke (Tx power) max. [dBm] | -3 |
| Sendestyrke (Tx power) min. [dBm] | -9 |
| Temperaturområde, drift | 0°C – +70°C (standard) |
| Temperaturområde, lagring | -40°C – +85°C |
