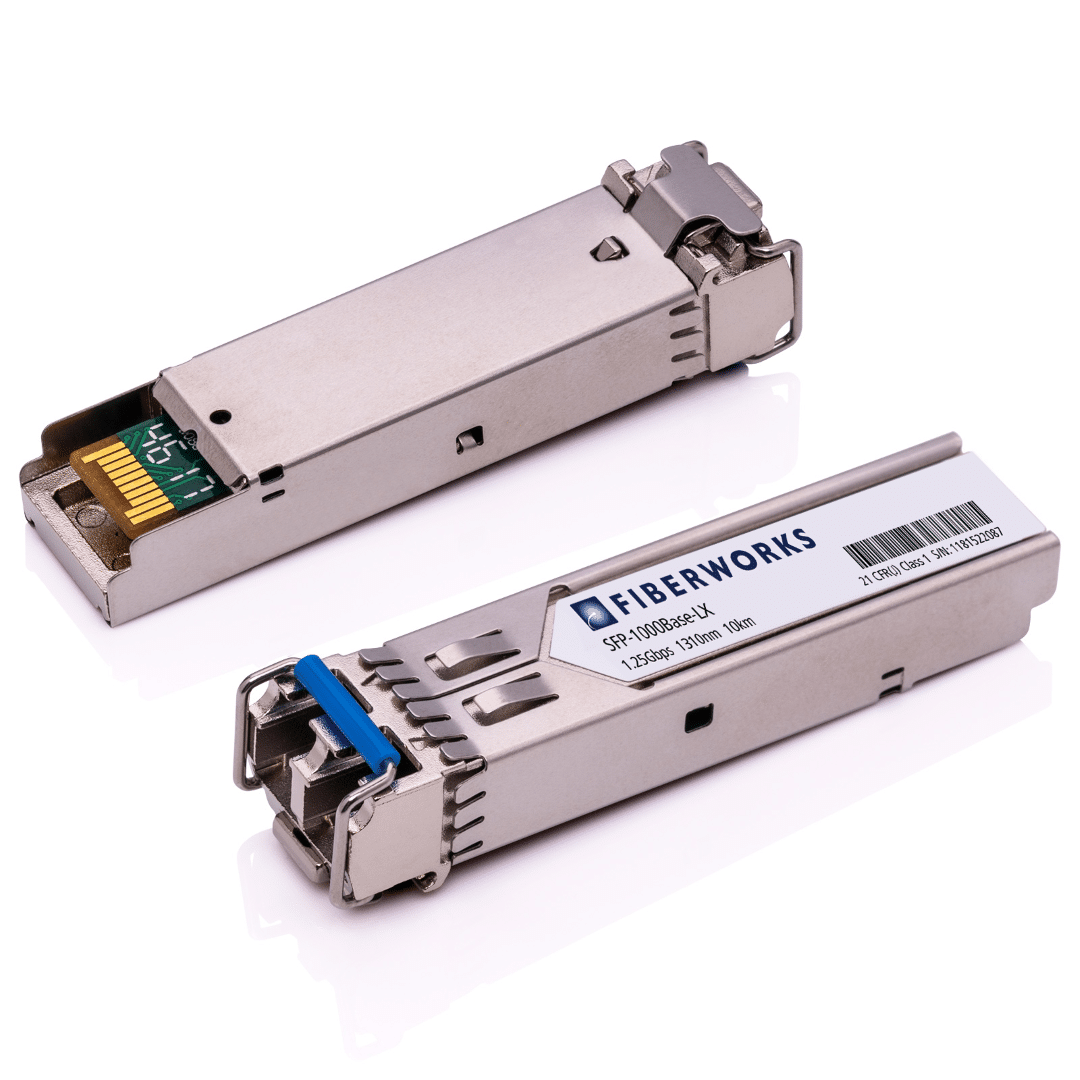

SFP, 1.25 Gbps GigE, 10km

SFP, 1.25 Gbps GigE, 10km

APPLICATIONS• 1000Base-LX• 1G Fibre ChannelFEATURES• Compatible with Small-Form Pluggable (SFP) MSA• Compatible with IEEE 802.3z• Compatible with ANSI specifications for Fibre Channel• Dual data-rate of 1.25 Gb/s and 1.6025 Gb/s operation• Operating wavelength at 1310 nm• Duplex LC connector type• 10 km transmission with 9/125 µm SM fiber• 550 m transmission with 62.5/125 µm MM fiber• Compatible with FCC 47 CFR Part, Class B Electromagnetic Interference (EMI)• Compatible with IEC 61000-4-2 and G

Produktnummer: SFP-1000BASE-LX-H3 Kategori:

På lager

132,69 kr

APPLICATIONS• 1000Base-LX• 1G Fibre ChannelFEATURES• Compatible with Small-Form Pluggable (SFP) MSA• Compatible with IEEE 802.3z• Compatible with ANSI specifications for Fibre Channel• Dual data-rate of 1.25 Gb/s and 1.6025 Gb/s operation• Operating wavelength at 1310 nm• Duplex LC connector type• 10 km transmission with 9/125 µm SM fiber• 550 m transmission with 62.5/125 µm MM fiber• Compatible with FCC 47 CFR Part, Class B Electromagnetic Interference (EMI)• Compatible with IEC 61000-4-2 and GR-1089-CORE Electrostatic Discharge (ESD)• +3.3V single power supply

Koding

H3C
Bølgelengde (nm)

1310
DDM

Nei
Fareklasse

Laser klasse 1
Formfaktor

SFP
Koding

H3C
Konnektor

LC Duplex
Lasertype

FP (Fabry-Perot)
Linjemodulasjon

NRZ
Max. mottakereffekt [dBm]

-3
Mediatype

SingelmodusMultimodus
Mottakerfølsomhet (Rx power min.) [dBm]

-19
Mottakertype

PIN
Produktklassifisering/tollkoder

ECCN: 5A991HS: 8517.62.0090
Protokoll / bitrate

Gigabit Ethernet
Rekkevidde (dB)

10
Rekkevidde (km)

10
Sendestyrke (Tx power) max. [dBm]

-3
Sendestyrke (Tx power) min. [dBm]

-9
Temperaturområde, drift

0°C – +70°C (standard)
Temperaturområde, lagring

-40°C – +85°C
