Hjem/Produkter/Transceiver/SFP/SFP, 1.25 Gbps GigE, 10km

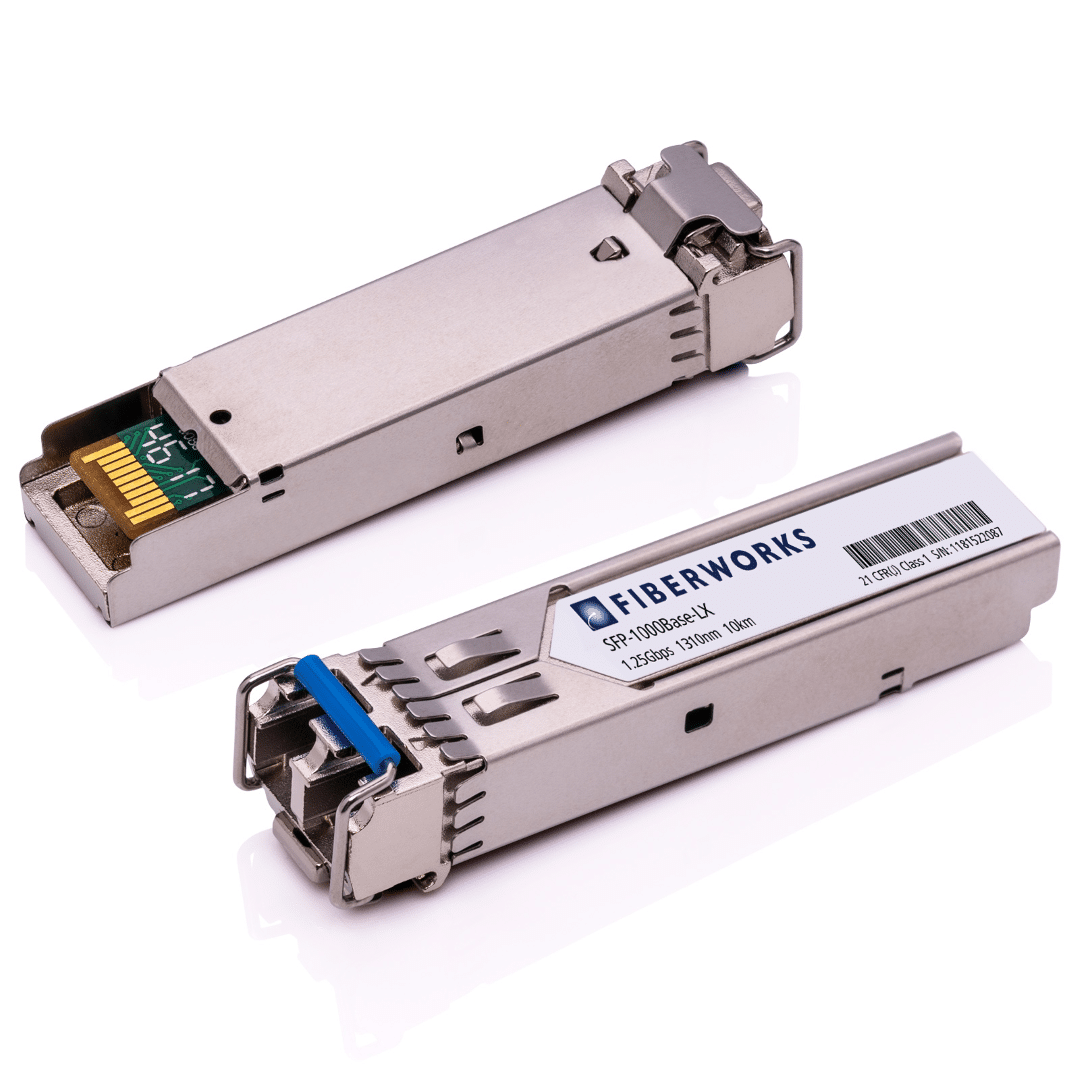

SFP, 1.25 Gbps GigE, 10km

SFP, 1.25 Gbps GigE, 10km

Produktnummer: SFP-1000BASE-LX Kategori:

132,69 kr

APPLICATIONS
• 1000Base-LX
• 1G Fibre Channel

FEATURES
• Compatible with Small-Form Pluggable (SFP) MSA
• Compatible with IEEE 802.3z
• Compatible with ANSI specifications for Fibre Channel
• Dual data-rate of 1.25 Gb/s and 1.6025 Gb/s operation
• Operating wavelength at 1310 nm
• Duplex LC connector type
• 10 km transmission with 9/125 µm SM fiber
• 550 m transmission with 62.5/125 µm MM fiber
• Compatible with FCC 47 CFR Part, Class B Electromagnetic Interference (EMI)
• Compatible with IEC 61000-4-2 and GR-1089-CORE Electrostatic Discharge (ESD)
• +3.3V single power supply

Koding

Cisco, Extreme, Fiberworks, HP, Huawei, Packetfront
Bølgelengde (nm)

1310
DDM

Nei
Fareklasse

Laser klasse 1
Formfaktor

SFP
Konnektor

LC Duplex
Lasertype

FP (Fabry-Perot)
Linjemodulasjon

NRZ
Max. mottakereffekt [dBm]

-3
Mediatype

Singelmodus, Multimodus
Mottakerfølsomhet (Rx power min.) [dBm]

-19
Mottakertype

PIN
Produktklassifisering/tollkoder

ECCN: 5A991, HS: 8517.62.0090
Protokoll / bitrate

Gigabit Ethernet
Rekkevidde (dB)

10
Rekkevidde (km)

10
Sendestyrke (Tx power) max. [dBm]

-3
Sendestyrke (Tx power) min. [dBm]

-9
Temperaturområde, drift

0°C – +70°C (standard)
Temperaturområde, lagring

-40°C – +85°C
