APPLICATIONS• 100G Ethernet• Data Center and LANFEATURES• Compliant with 100Gbase-LR4• 4 wavelength lanes Mux/Demux design (1295.56 nm, 1300.05 nm, 1304.58 nm, 1309.14 nm)• Up to 25.8 Gbps Data rate per wavelength• Up to 10km transmission on SMF• Electrically hot-pluggable• Digital Diagnostics Monitoring Interface• Compliant with QSFP28 MSA with LC connector• Case operating temperature range:-40°C to +85°C• Power dissipation < 3.5 W

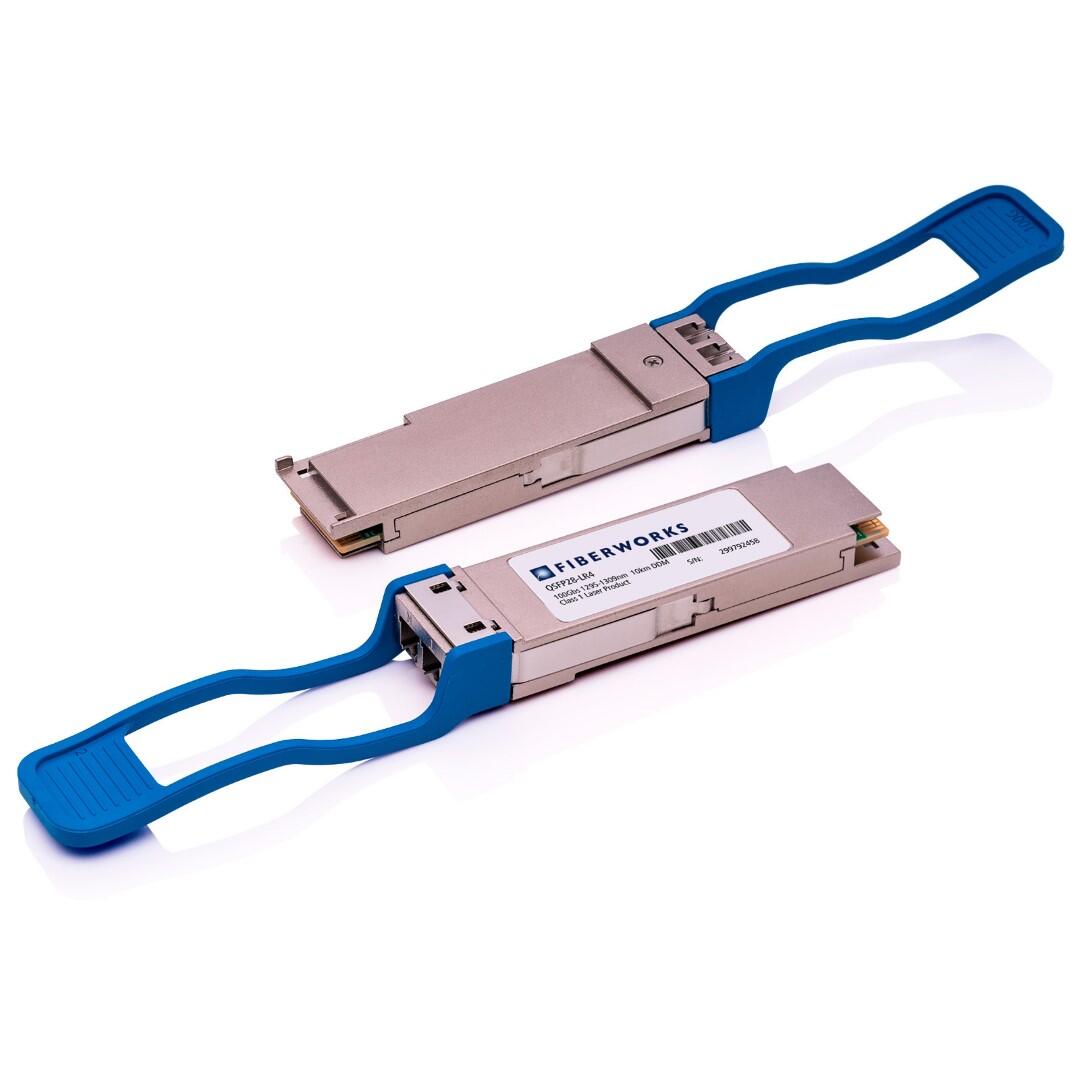

QSFP28, 100GBASE-LR4, 4×25.8 Gbps, 10km
APPLICATIONS• 100G Ethernet• Data Center and LANFEATURES• Compliant with 100Gbase-LR4• 4 wavelength lanes Mux/Demux design (1295.56 nm, 1300.05 nm, 1304.58 nm, 1309.14 nm)• Up to 25.8 Gbps Data rate per wavelength• Up to 10km transmission on SMF• Electrically hot-pluggable• Digital Diagnostics Monitoring Interface• Compliant with QSFP28 MSA with LC connector• Case operating temperature range:-40°C to +85°C• Power dissipation < 3.5 W
På lager
7 547,10 kr
| Koding | H3C |
|---|---|
| Bølgelengde (nm) | 13104x LAN-WDM (1296-1309) |
| DDM | Ja |
| Fareklasse | Laser klasse 1 |
| Formfaktor | QSFP28 |
| Koding | H3C |
| Konnektor | LC Duplex |
| Lasertype | DFB |
| Linjemodulasjon | NRZ |
| Max. mottakereffekt [dBm] | +4, 5 |
| Mediatype | Singelmodus |
| Mottakerfølsomhet (Rx power min.) [dBm] | -10, 5 |
| Mottakertype | PIN |
| Produktklassifisering/tollkoder | ECCN: 5A991HS: 8517.62.0090 |
| Protokoll / bitrate | 100 Gigabit Ethernet |
| Rekkevidde (dB) | 6 |
| Rekkevidde (km) | 10 |
| Sendestyrke (Tx power) max. [dBm] | +4, 5 |
| Sendestyrke (Tx power) min. [dBm] | -4, 5 |
| Temperaturområde, drift | -40°C – +85°C (industriell) |
| Temperaturområde, lagring | -40°C – +85°C |
