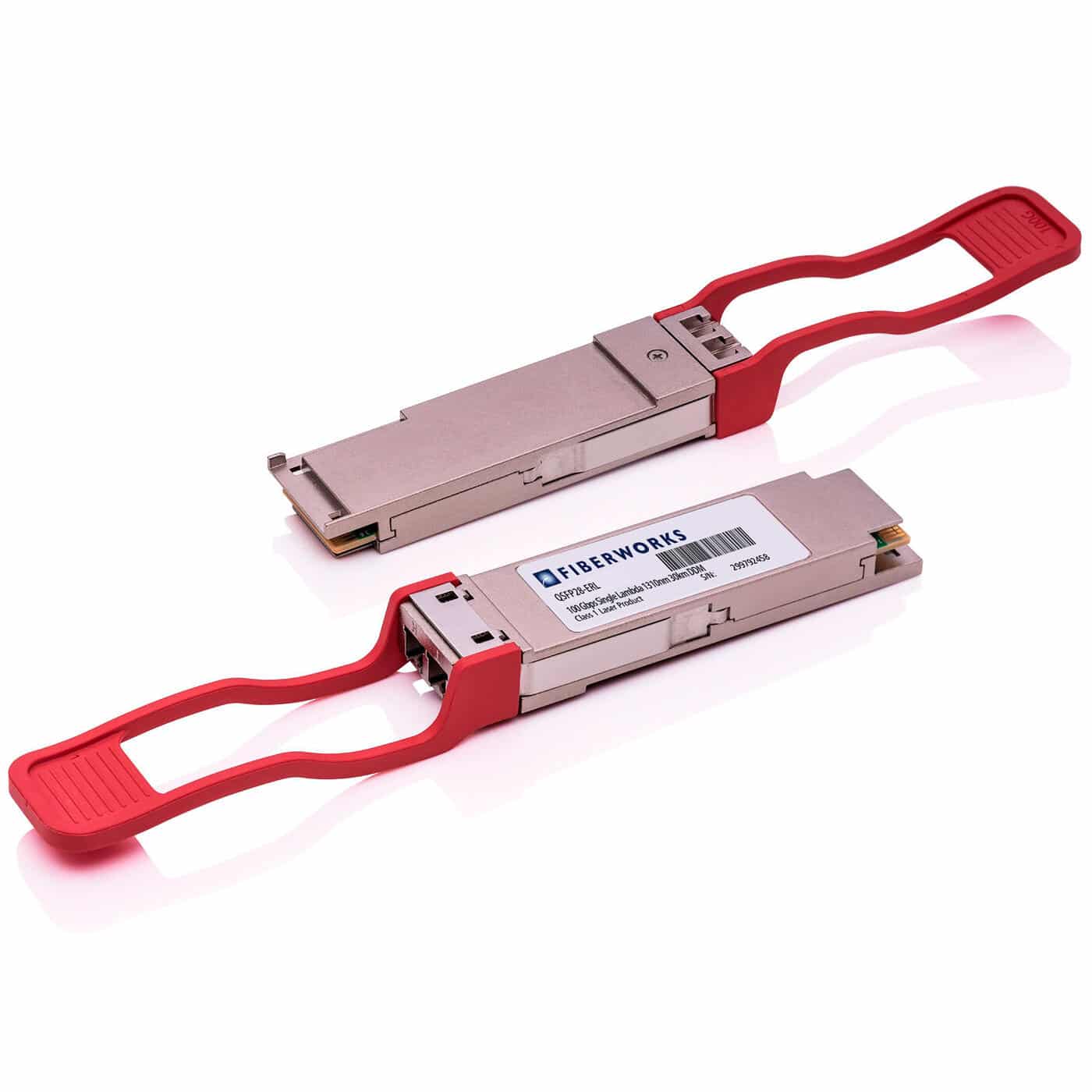

The QSFP28 ERL Single Lambda transceiver is a 100 Gbit/s pluggable module for bi-directional serial optical data communications such as 100GBASE Ethernet. The transceiver operates with one PAM4 modulated signal at 1310 nm.The module is fully compliant with QSFP28 related MSA standards described in SFF-8636 and Digital Diagnostic functions are available through an I2C interface. QSFP28 Single Lambda complies with 100Gbase-ER1-30.APPLICATIONS• 100G Ethernet• Data Center and LANFEATURES• Compliant with 100Gbase-ERL• Single Lambda 1310 nm• Up to 30km transmission on SMF with FEC• Electrically hot-pluggable• Digital Diagnostics Monitoring Interface• Compliant with QSFP28 MSA with LC connector• Case operating temperature range:0°C to 70°C• Power dissipation < 4.5 W
QSFP28, 100GBASE-ERL, SingleLambda, 30km
The QSFP28 ERL Single Lambda transceiver is a 100 Gbit/s pluggable module for bi-directional serial optical data communications such as 100GBASE Ethernet. The transceiver operates with one PAM4 modulated signal at 1310 nm.The module is fully compliant with QSFP28 related MSA standards described in SFF-8636 and Digital Diagnostic functions are available through an I2C interface. QSFP28 Single Lambda complies with 100Gbase-ER1-30.APPLICATIONS• 100G Ethernet• Data Center and LANFEATURES• Compliant
På lager
15 616,15 kr
| Koding | H3C |
|---|---|
| Bølgelengde (nm) | 1310Single Lambda 1310nm |
| DDM | Ja |
| Fareklasse | Laser klasse 1 |
| Formfaktor | QSFP28 |
| Koding | H3C |
| Konnektor | LC Duplex |
| Lasertype | EML |
| Max. mottakereffekt [dBm] | -3 |
| Mediatype | Singelmodus |
| Mottakerfølsomhet (Rx power min.) [dBm] | -12, 5 |
| Mottakertype | APD |
| Produktklassifisering/tollkoder | ECCN: 5A991HS: 8517.62.0090 |
| Protokoll / bitrate | 100 Gigabit Ethernet |
| Rekkevidde (dB) | 12, 5 |
| Rekkevidde (km) | 30 |
| Sendestyrke (Tx power) max. [dBm] | +5, 5 |
| Sendestyrke (Tx power) min. [dBm] | 0 |
| Temperaturområde, drift | 0°C – +70°C (standard) |
| Temperaturområde, lagring | -40°C – +85°C |
