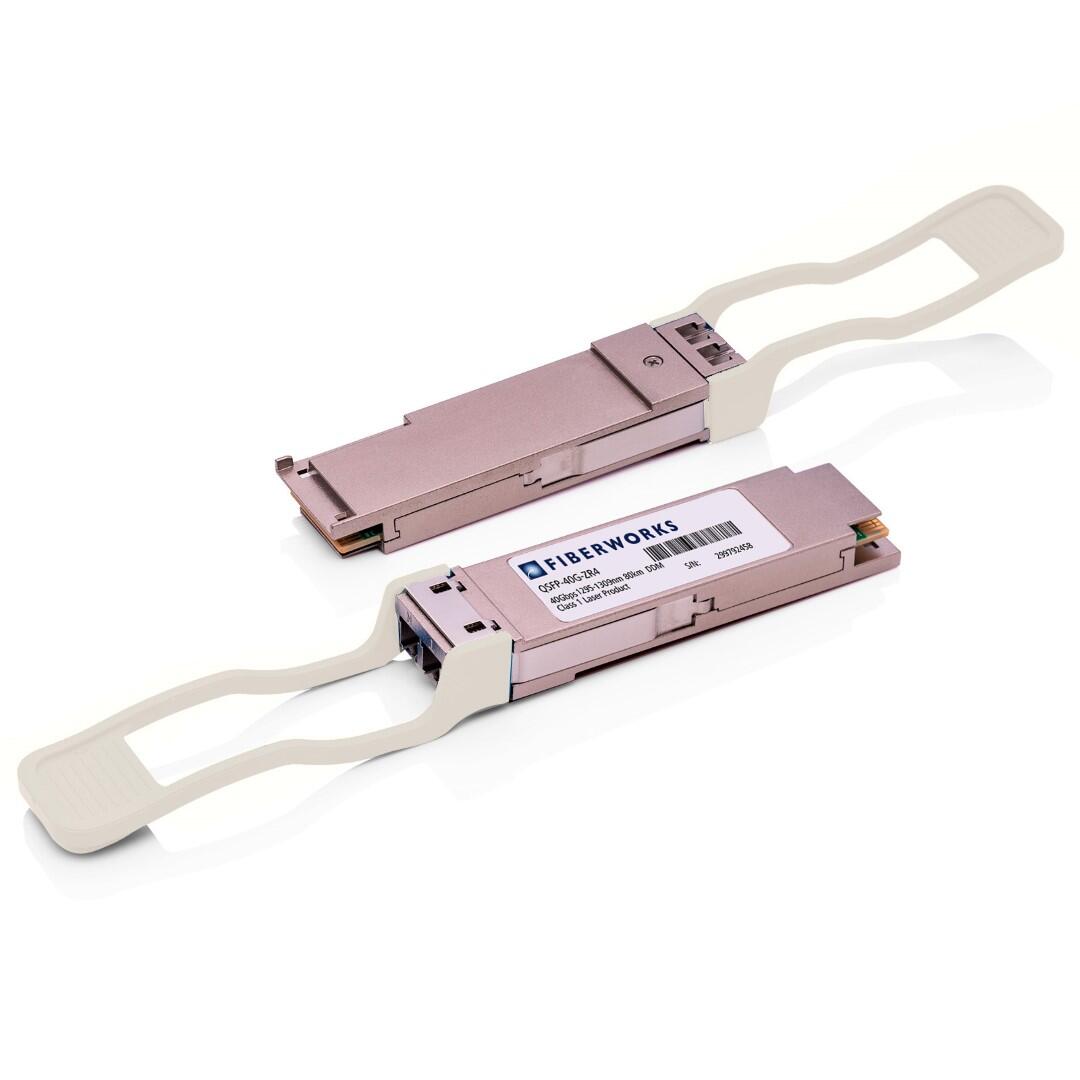

QSFP+, 40GBASE-ZR4, 4 x 10.3 Gbps, 80km

The QSFP+ 40G ZR4 transceiver is a 40 Gbit/s pluggable module for bi-directional serial optical data communications such as 40GBASE Ethernet and 10GBASE Ethernet. The transceiver operates with four parallel data streams of 10.3125 Gbps in order to provide an aggregate signal rate of 41.25 Gbps. The four lanes are launched with center wavelengths of 1295,56 nm, 1300,05 nm, 1304,58 nm and 1309,14 nm and multiplexed onto singlemode fiber. On the receive side, the four lanes of optical data streams are de-multiplexed by the transceiver and retimed.The module is fully compliant with QSFP+ related MSA’s described in SFF-8665 and Digital Diagnostic functions are available through an I2C interface. QSFP-40G-ZR4 complies with IEEE 802.3.APPLICATIONS• 40G Ethernet• 10G Ethernet• WAN/Metro networksFEATURES• 4 LWDM lanes Mux/Demux design (1295,56 nm, 1300,05 nm, 1304,58 nm and 1309,14 nm)• Up to 41.25Gbps Data rate• Up to 80km transmission on SMF• Electrically hot-pluggable• Digital Diagnostics Monitoring Interface• Compliant with QSFP+ MSA with LC connector• Case operating temperature range:0°C to 70°C• Power dissipation < 4.5 W
