APPLICATIONS• 40G Ethernet• Data Center and LANFEATURES• 4 parallell channels at 1310nm• Up to 10.3125Gbps Data rate per channel• Up to 10km transmission on SMF• Electrically hot-pluggable• Digital Diagnostics Monitoring Interface• Compliant with QSFP+ MSA with MPO connector (APC)• Case operating temperature range:0°C to 70°C• Power dissipation < 3.5 W

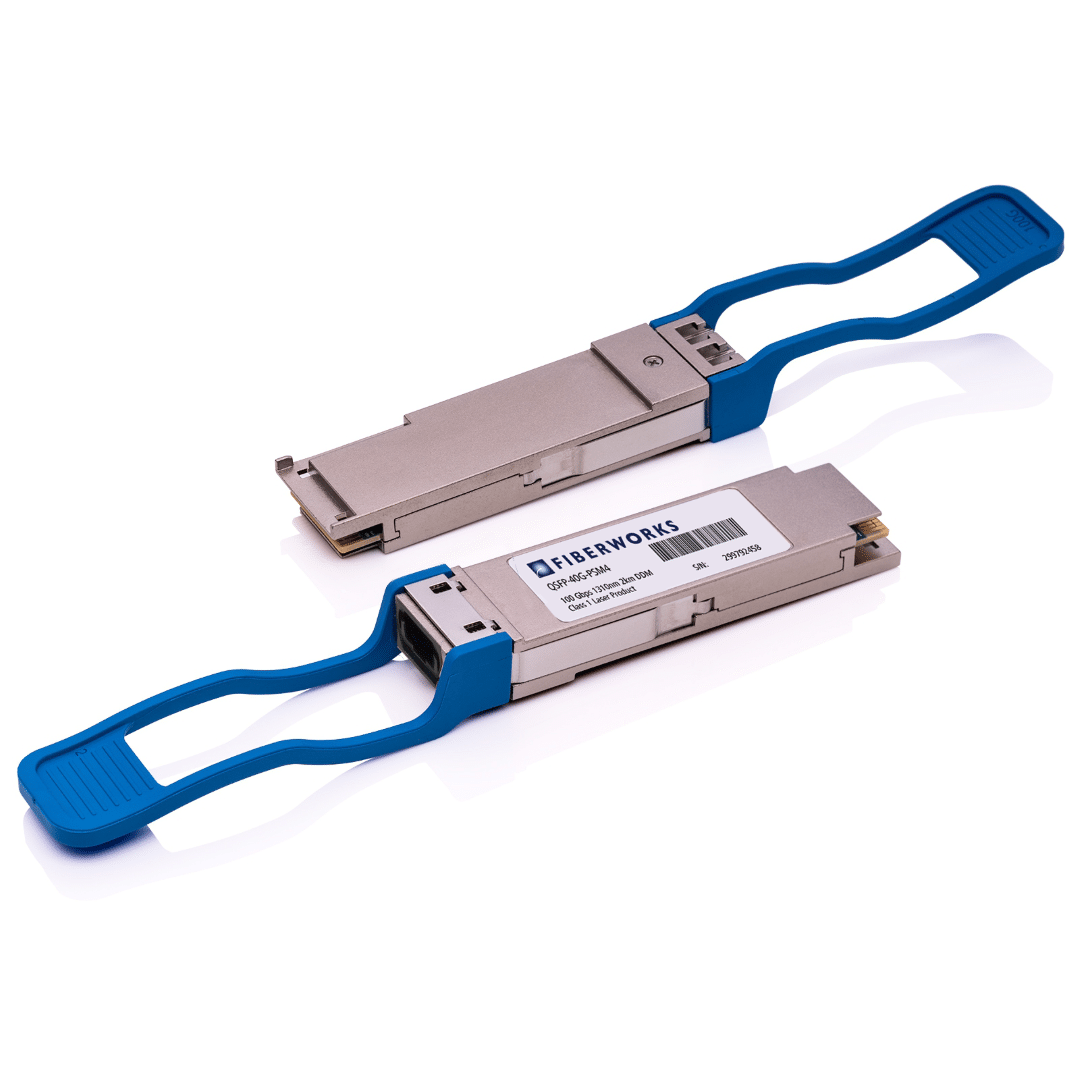

QSFP+, 40GBASE-PSM4, 4 x 10.3 Gbps, 10km
APPLICATIONS• 40G Ethernet• Data Center and LANFEATURES• 4 parallell channels at 1310nm• Up to 10.3125Gbps Data rate per channel• Up to 10km transmission on SMF• Electrically hot-pluggable• Digital Diagnostics Monitoring Interface• Compliant with QSFP+ MSA with MPO connector (APC)• Case operating temperature range:0°C to 70°C• Power dissipation < 3.5 W
På lager
3 796,38 kr
| Koding | H3C |
|---|---|
| Bølgelengde (nm) | 1310 |
| DDM | Ja |
| Fareklasse | Laser klasse 1 |
| Formfaktor | QSFP+ |
| Koding | H3C |
| Konnektor | MPO |
| Lasertype | DFB |
| Linjemodulasjon | NRZ |
| Max. mottakereffekt [dBm] | +2 |
| Mediatype | Singelmodus |
| Mottakerfølsomhet (Rx power min.) [dBm] | -12 |
| Mottakertype | PIN |
| Produktklassifisering/tollkoder | ECCN: 5A991HS: 8517.62.0090 |
| Protokoll / bitrate | 10 Gigabit Ethernet40 Gigabit Ethernet |
| Rekkevidde (dB) | 6 |
| Rekkevidde (km) | 10 |
| Sendestyrke (Tx power) max. [dBm] | +2 |
| Sendestyrke (Tx power) min. [dBm] | -6 |
| Temperaturområde, drift | 0°C – +70°C (standard) |
| Temperaturområde, lagring | -40°C – +85°C |
