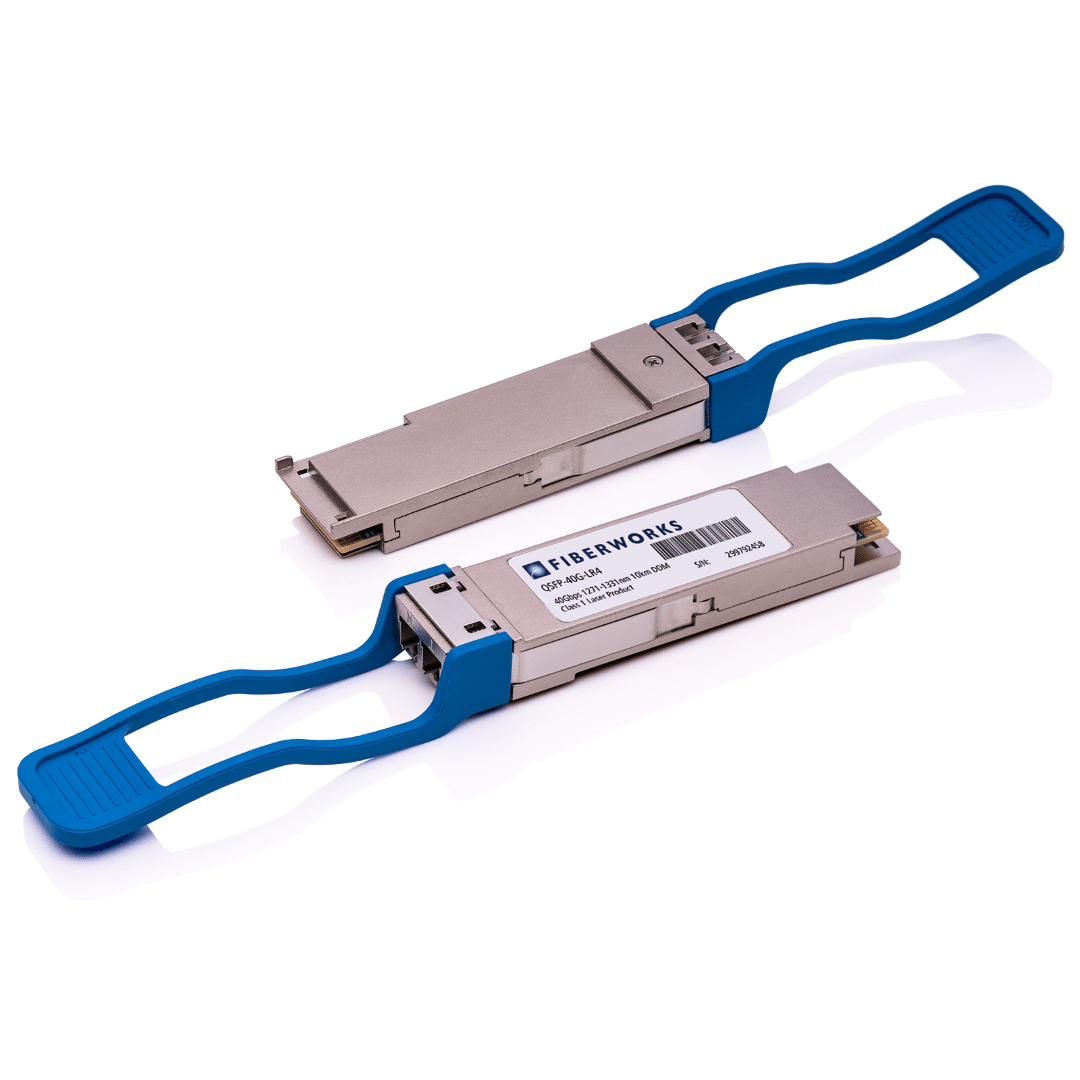

QSFP+, 40GBASE-LR4, 4 x 10.3 Gbps, 20km

QSFP+, 40GBASE-LR4, 4 x 10.3 Gbps, 20km

APPLICATIONS• 40G Ethernet• Data Center and LAN• InfiniBandFEATURES• 4 CWDM lanes Mux/Demux design (1271, 1291, 1311 and 1331 nm)• Up to 11.1Gbps Data rate per wavelength• Up to 20km transmission on SMF• Electrically hot-pluggable• Digital Diagnostics Monitoring Interface• Compliant with QSFP+ MSA with LC connector• Case operating temperature range:0°C to 70°C• Power dissipation < 3.5 W

Produktnummer: QSFP-40G-LR20-F5 Kategori:

På lager

4 991,25 kr

APPLICATIONS• 40G Ethernet• Data Center and LAN• InfiniBandFEATURES• 4 CWDM lanes Mux/Demux design (1271, 1291, 1311 and 1331 nm)• Up to 11.1Gbps Data rate per wavelength• Up to 20km transmission on SMF• Electrically hot-pluggable• Digital Diagnostics Monitoring Interface• Compliant with QSFP+ MSA with LC connector• Case operating temperature range:0°C to 70°C• Power dissipation < 3.5 W

Koding

F5 Networks
Bølgelengde (nm)

13104x CWDM (1270-1330)
DDM

Ja
Fareklasse

Laser klasse 1
Formfaktor

QSFP+
Koding

F5 Networks
Konnektor

LC Duplex
Lasertype

DFB
Linjemodulasjon

NRZ
Mediatype

Singelmodus
Mottakertype

PIN
Produktklassifisering/tollkoder

ECCN: 5A991HS: 8517.62.0090
Protokoll / bitrate

10 Gigabit Ethernet40 Gigabit Ethernet
Rekkevidde (dB)

7.5
Rekkevidde (km)

20
Temperaturområde, drift

0°C – +70°C (standard)
Temperaturområde, lagring

-40°C – +85°C
