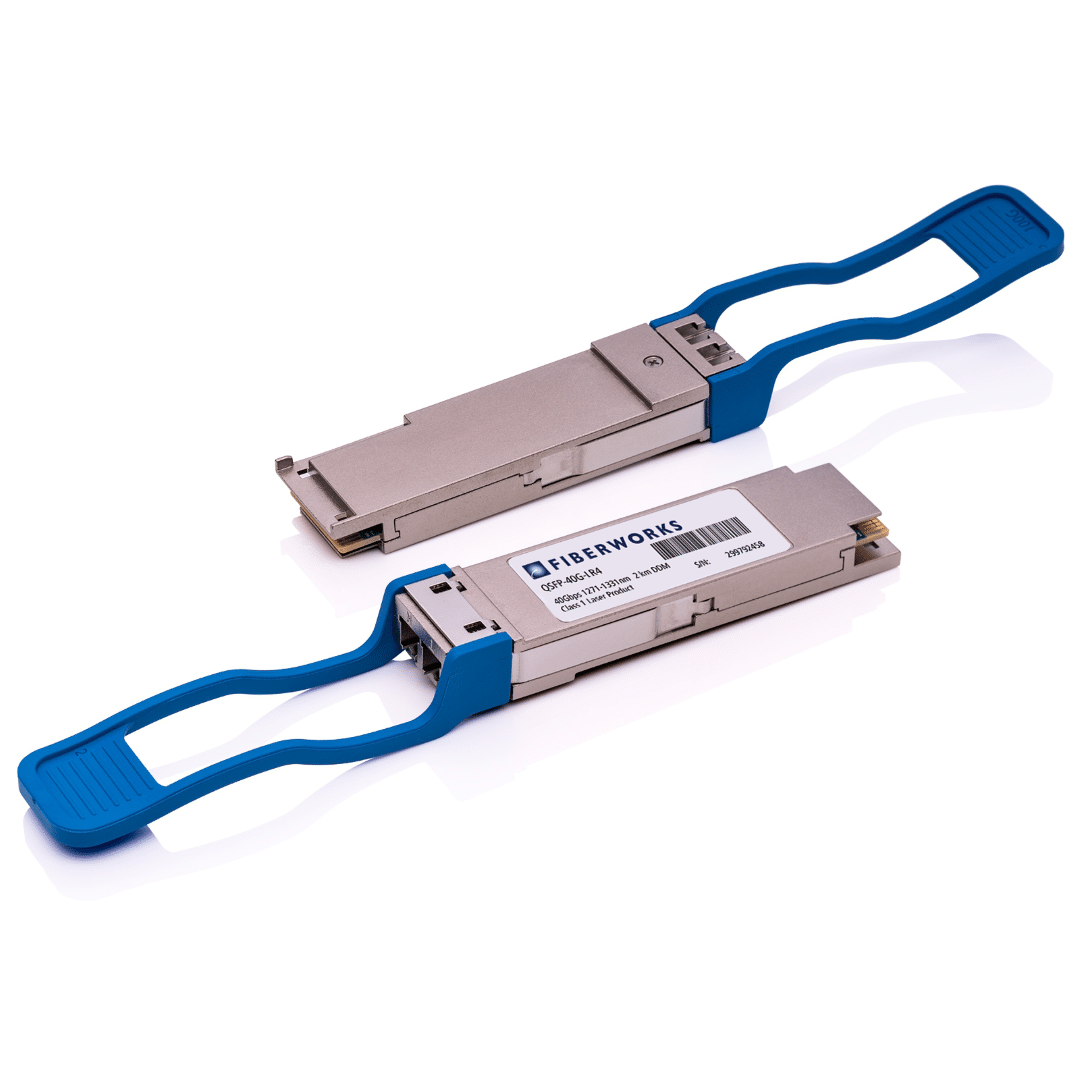

QSFP+, 40GBASE-IR4, 4 x 10.3 Gbps, 2km

QSFP+, 40GBASE-IR4, 4 x 10.3 Gbps, 2km

Produktnummer: QSFP-40G-IR4 Kategori:

3 342,63 kr

APPLICATIONS
• 40G Ethernet
• Data Center and LAN
• InfiniBand

FEATURES
• 4 CWDM lanes Mux/Demux design (1271, 1291, 1311 and 1331 nm)
• Up to 11.1Gbps Data rate per wavelength
• Up to 2km transmission on SMF
• Electrically hot-pluggable
• Digital Diagnostics Monitoring Interface
• Compliant with QSFP+ MSA with LC connector
• Case operating temperature range:0°C to 70°C
• Power dissipation < 3.5 W

Koding

Alcatel, Arista, Cisco, Citrix Nets, Dell, Extreme, Fiberworks, Fortinet, HP Virt.Con, Huawei, IBM, Infinera XT, Intel, Juniper, Mellanox
Bølgelengde (nm)

1310, 4x CWDM (1270-1330)
DDM

Ja
Fareklasse

Laser klasse 1
Formfaktor

QSFP+
Konnektor

LC Duplex
Lasertype

DFB
Linjemodulasjon

NRZ
Max. mottakereffekt [dBm]

+3
Mediatype

Singelmodus
Mottakerfølsomhet (Rx power min.) [dBm]

-11
Mottakertype

PIN
Produktklassifisering/tollkoder

ECCN: 5A991, HS: 8517.62.0090
Protokoll / bitrate

10 Gigabit Ethernet, 40 Gigabit Ethernet
Rekkevidde (dB)

4.5
Rekkevidde (km)

2
Sendestyrke (Tx power) max. [dBm]

+2
Sendestyrke (Tx power) min. [dBm]

-7
Temperaturområde, drift

0°C – +70°C (standard)
Temperaturområde, lagring

-40°C – +85°C
