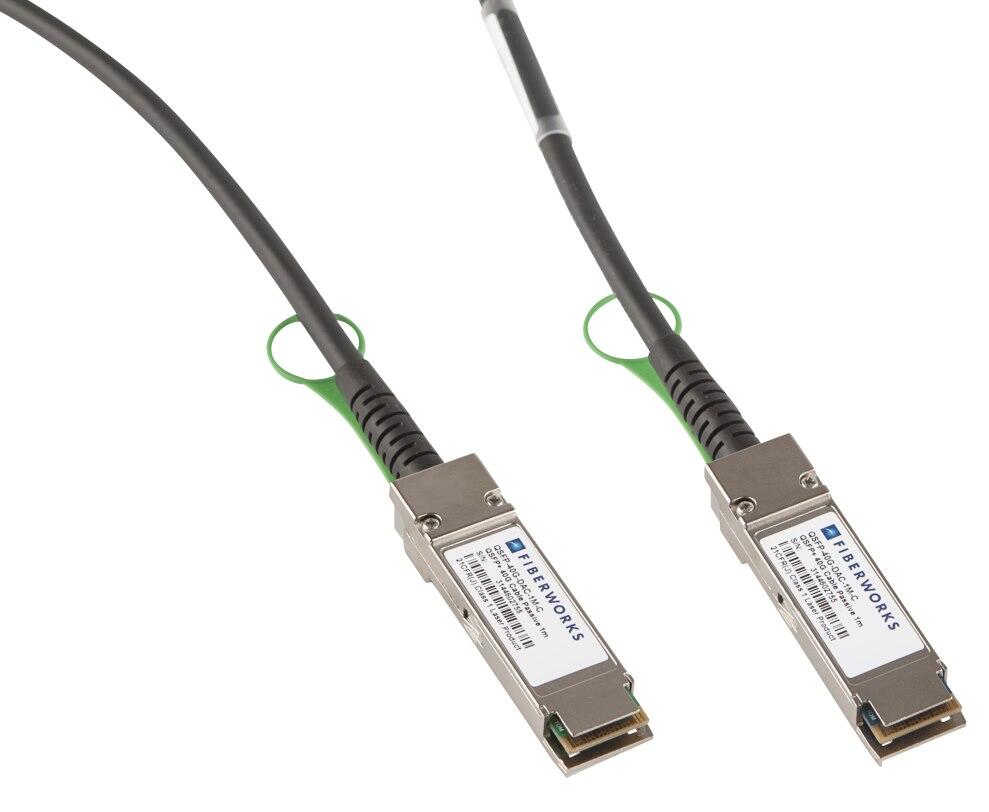

The Fiberworks QSFP+ Copper Twinax Cable assemblies are high performance, cost effective I/O solutions for 40G Ethernet applications. The transceiver modules achieve high port density, configurability and utilization at a very low cost and reduce power budget.
The QSFP+ DAC utilizes four parallel 10G channels to transmit 40G.
The modules are fully compliant to the QSFP+ MSA SFF-8436 and are hot pluggable. The modules meet the requirements of the IEEE 802.3 40GBASE-CR and are suitable for interconnections in 40G Ethernet environments.
APPLICATIONS
• Switch fabric I/O
• Data center cabling infrastructure
• High density connections between networking equipment
FEATURES
• Hot-pluggable QSFP+ footprint
• 40-Gbps full-duplex serial transmission
• 3.3V power supply
• Metal enclosure for lower EMI
• Power consumption less than 0,5W
• Compliant with MSA QSFP+
• RoHS-6 compliant (lead-free)
• Operating Case Temperature: Standard 0°C to + 70°C
