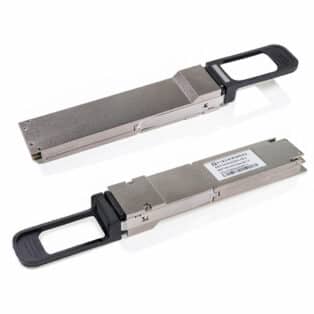

The OSFP 2xFR4 transceiver is a 800 Gbit/ pluggable module for optical data communications. The transceiver has two 400Gbase-FR4 interfaces on the optical side, each of which operates with four parallel data streams of 106.25 Gbps. The module has two LC duplex connectors. Each of these are interoperable with 400GBASE-FR4 transceivers. Hence the OSFP 2xFR4 can easily be used for breakout to two separate 400G FR4 transceivers.
The module is fully compliant with all OSFP related MSA standards and Digital Diagnostic functions are available through an I2C interface. OSFP-2x400G-FR4 complies with IEEE 802.3 and 400Gbase-FR4.
APPLICATIONS
• 800G Ethernet
• 2 x 400G Ethernet
• NDR Infiniband
• Data Center and LAN
FEATURES
• Compliant with 400Gbase-FR4
• 4 wavelength lanes Mux/Demux design (1271nm, 1291nm, 1310nm, 1330nm)
• Up to 106.25 Gbps Data rate per wavelength
• Up to 2km transmission on SMF
• Electrically hot-pluggable
• Digital Diagnostics Monitoring Interface
• Compliant with OSFP MSA
• Compliant with OIF-CMIS rev.5.0
• Dual duplex LC connector
• Case operating temperature range:0°C to 70°C
• Power dissipation < 14 W
